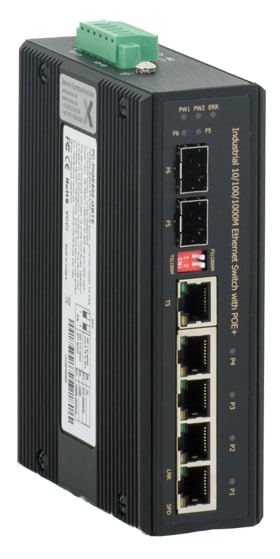

Power over Ethernet Switch


Part of the EN 54-16 approval

The Power over Ethernet (PoE) Switch is designed to supply the Ethernet Touch Call Station ETCS directly via the Ethernet cable. The PoE Switch is equipped with high efficient power supply technology which allows PoE injection at low input voltage, such as 12/24/48 V DC.

  • 4xRJ45 10/100/1000BaseT(X) auto negotiation
  • 4 Giga POE+ 802.3at/af PSE ports
  • Redundant 12V56 V DC Power Input
  • Failure relay, contact load 24 V DC / 1 A
  • Rugged Metal housing
  • IP30 Protection
  • DIN Rail Mounting

Operating Voltage
12/24/48 V DC
Power consumption (no PoE)
max. 6W
Power consumption (with PoE)
max. 130W
Type of protection
IP 30
Ambient temperature
-40 °C … +75 °C
Storage temperature
-40 °C … +85 °C
Air humidity
5 % … 95 % rel. hum. (non-condensing)
W:142 mm H: 43 mm D: 105 mm
