essernet switch FlexES Control

FX784844

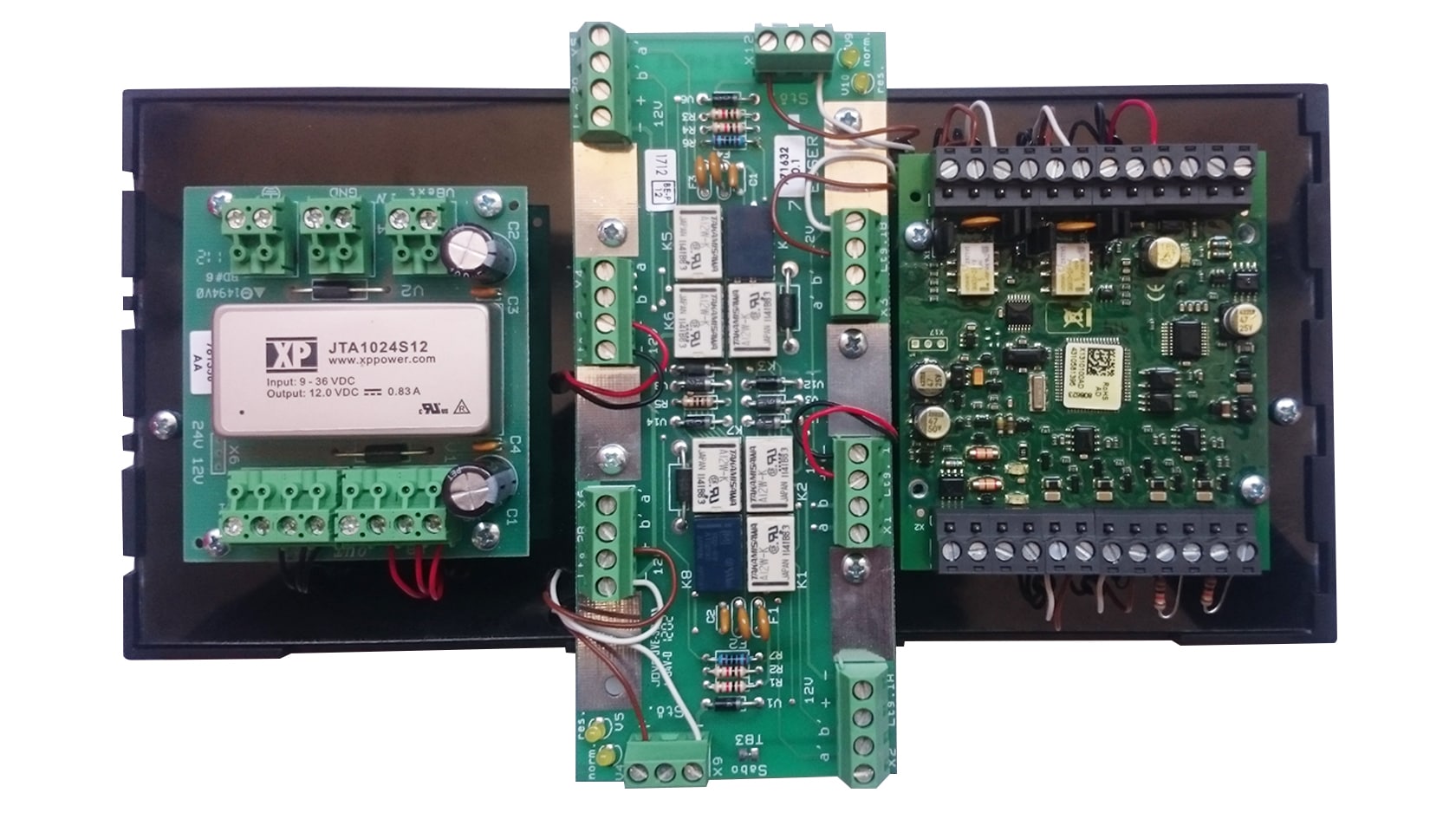

The essernet® switch enables uninterrupted redundant switching between a main line and a reserve line in the event of a fault on the essernet® data line. The switch is powered from the fire alarm control panel. Essernet switch allows to build doubled essernet ring for multiple redundant essernet connections of each panel.

Features & Benefits
Technical Data
Accessories
Documents

Operating voltage	8 V DC ... 28 V DC
Current consumption	30 mA @ 24 V DC
Storage temperature	-10 °C ... 70 °C
Ambient temperature	-20 °C ... 80 °C
Type of protection	IP20
Housing	Plastic
Air humidity	W< 95 % (non-condensing)
Color	Black
Weight	approx. 415 g
Dimensions	W: 150 mm H: 245 mm D: 45 mm
