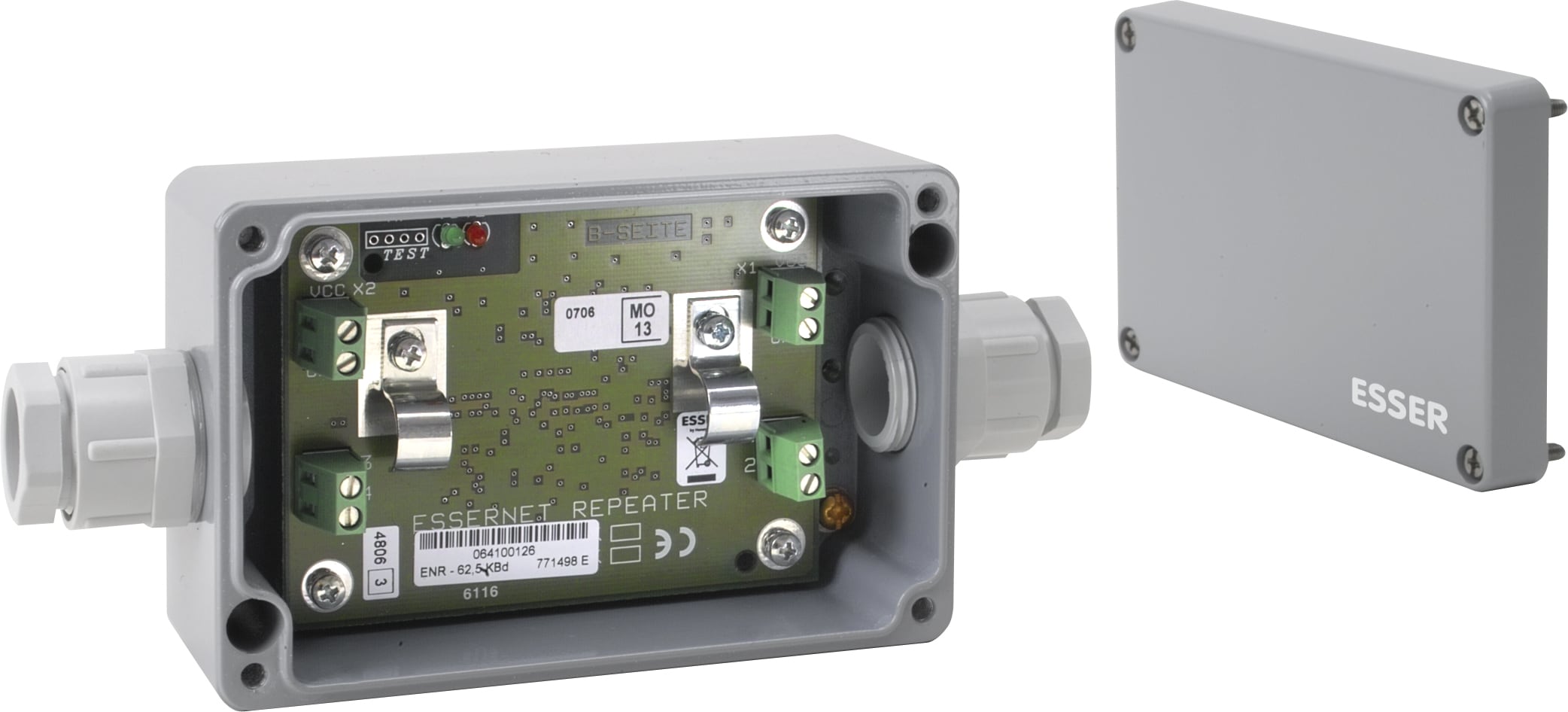

essernet repeater, 62.5 kBd

784865

Approval: VdS

The essernet repeater increases the maximum distance between two FACP in the essernet by up to 1000 m. Standard telephone cables can be used as connection leads. Two repeaters can be operated in line.

Features & Benefits
Technical Data
Accessories
Documents

Baud rate	62.5 kBd
Operating voltage	8 ... 18 V DC
Color	gray
Housing	die-cast aluminum
Weight g	approx. 520 g
Cable	telecommunications cable IY(St)Y n x 2 x 0.8 mm
Storage temperature	-20 °C ... 80 °C
Air humidity	< 95 % (non-condensing)
Type of protection	IP65
Current consumption @ 12 V DC	approx. 100 mA
Data transmission speed	62,5 kBd
Ambient temperature	-10 °C ... 70 °C
VdS class	F
VdS-Nr	G202058
Dimensions	W: 125 mm H: 60 mm D: 80 mm
