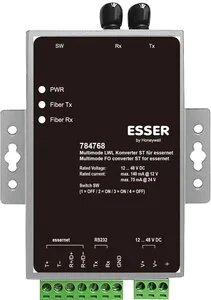

Multimode FO converter ST

784768

Depending on the fiber used, distances of up to 4 km are possible. Suitable for multimode fibres G50/125 μm and G62,5/125 μm.

Features & Benefits
Technical Data
Accessories
Documents

• Two multimode fibers required per network section
• Glass fibre G50 / 125 μm: attenuation max. 10 dB, distance up to 4000 m
• Glass fibre G62.5 / 125 μm: attenuation max. 10 dB, distance up to 4000 m

Additional Information:
The power supply of the fibre optic converter must be provided by the FACP. On both sides of a fibre optic line, fibre optic converters of the same type must always be used.

Scope of Delivery:
1x DIN rail mounting kit 1x connecting cable max. 1,8 m converter - essernet®-module.

Operating voltage	9,5 ... 48 V DC
Current consumption @ 12 V DC	approx. 140 mA
Current consumption @ 24 V DC	approx. 75 mA
Ambient temperature	10 °C ... 60 °C
Storage temperature	-20 °C ... 75 °C
Wavelength	850 nm
Connection	ST
Type of protection	IP 20
Housing	Aluminium unpainted
Weight	approx. 320 g
Dimensions	W: 67 mm H: 100 mm D: 22 mm
