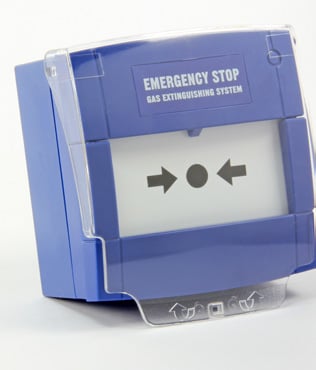

Emergency stop MCP extinguishing blue, indoor

M3A-B000SG-K013-66

The Call Points can be used as part of a system to efficiently manage the emergency stop of any extinguishing gas in accordance with EN12094-3:2003. The non-addressable Call Point range is designed for indoor (IP24D) use.

•Easy cable access simplifies installation
•Range of installation options, for indoor (IP24D) applications
•Independently verified by Bureau Veritas to EN12094-3:2003
•High quality materials maximize operational life

•Modern aesthetics and compact design with anti-tamper features

Max Voltage
30VDC
Current rating
2 A
Operating temperature
-10 °C to +55 °C
Operating humidity
93% +-3%
Protection
IP24D
Dimensions
W: 92 mm H: 105 mm D: 30 mm
Weight
220 g
Plug-in Terminals
0.5 to 2.5 mm2
Housing Colour
Blue
Material
PC/ABS
  • SC070 Pack of 10 test keys
  • MUS155 Pack of 5 glass elements
  • PS200 Plain hinged cover

Promotional - Product Data Sheets

TypeNameSize
Product Datasheet_Extinguishing Indoor and Outdoor Call Points_12094-3:2003 1 MB
