20 W spherical speaker EN 54, ABS

582461

Approval as per EN 54-24, 1438/CPD/0325

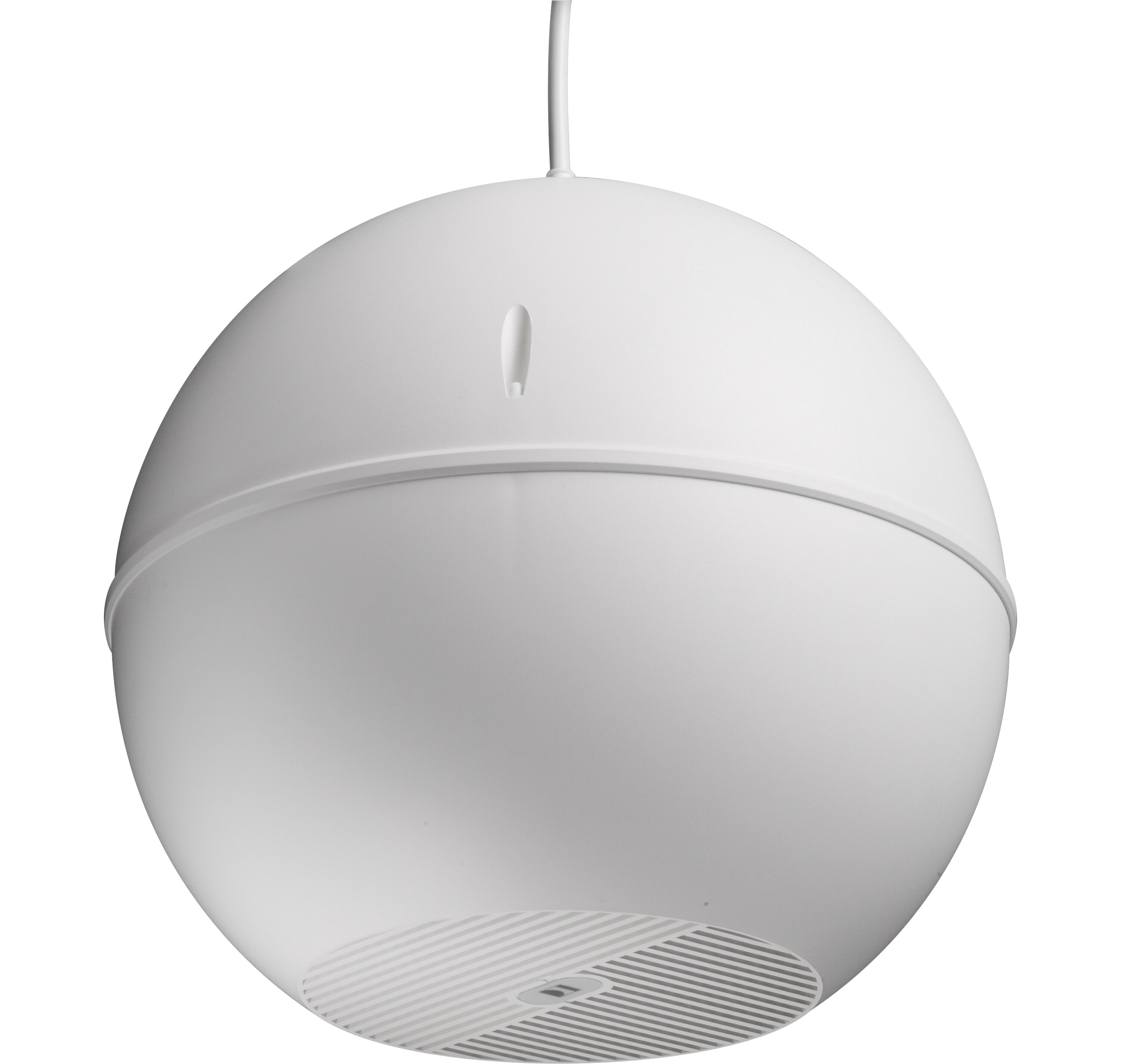

The DL-54 K 20-165/T-EN with an impact-resistant, UV-resistant ABS-housing in white (UL94 V0) features a corrosion-resistant 165-mm broadband loudspeaker chassis with ceramic terminal and thermal fuse. The spherical loudspeaker certified according to EN 54-24 meets the highest safety requirements of IP 35 (IEC 529). The power setting of DL-K 20-165 / T can be easily adjusted by turning the screw at the top of the ball. The low-resistance mode is also possible.

The compact DL-K 16-130/T-EN 54 is equipped with a corrosion-resistant 130 mm full range speaker chassis with ceramic terminal and thermal fuse. The 16 W high ball speaker certified to EN 54-24 with ABS housing (UL94 HB) offers a high sound pressure level and a balanced frequency response.
The compact DL-K 16-130/T-EN 54 is equipped with a corrosion-resistant 130 mm full range speaker chassis with ceramic terminal and thermal fuse. The 16 W high ball speaker certified to EN 54-24 with ABS housing (UL94 HB) offers a high sound pressure level and a balanced frequency res
The DL-54 K 20-165/T-EN with an impact-resistant, UV-resistant ABS-housing in white (UL94 V0) features a corrosion-resistant 165-mm broadband loudspeaker chassis with ceramic terminal and thermal fuse. The spherical loudspeaker certified according to EN 54-24 meets the highest safety requirements of IP 35 (IEC 529). The power setting of DL-K 20-165 / T can be easily adjusted by turning the screw at the top of the ball. The low-resistance mode is also possible.
The DL-54 K 20-165/T-EN with an impact-resistant, UV-resistant ABS-housing in white (UL94 V0) features a corrosion-resistant 165-mm broadband loudspeaker chassis with ceramic terminal and thermal fuse. The spherical loudspeaker certified according to EN 54-24 meets the highest safety requirements of IP 35 (IEC 529). The power setting of DL-K 20-165 / T can be easily adjusted by turning the screw at the top of the ball. The low-resistance mode is also possible.

Scope of Delivery
Pre-mounted, 5-core connection cable, length 4,50 m
Including canopy

Additional Information:
Delivery time on request

Ambient temperature
-20 °C ... 80 °C
Rated Power
20 W
Transformer power taps
20 / 10 / 5 / 2,5 W
Type of protection
IP 35
Color
white, similar to RAL 9010
Weight approx. 2.2 kg
Dimensions
Ø: 260 mm D: 245 mm
Sensitivity EN 54-24, 1 W / 1 m 91.5 dB
Sensitivity EN 54-24, max 1 m 104.5 dB
Transmission range 128 ... 17900 Hz (-10 dB)
Dispersion angle 163° @ 1 kHz
Declaration of Performance 005-13
