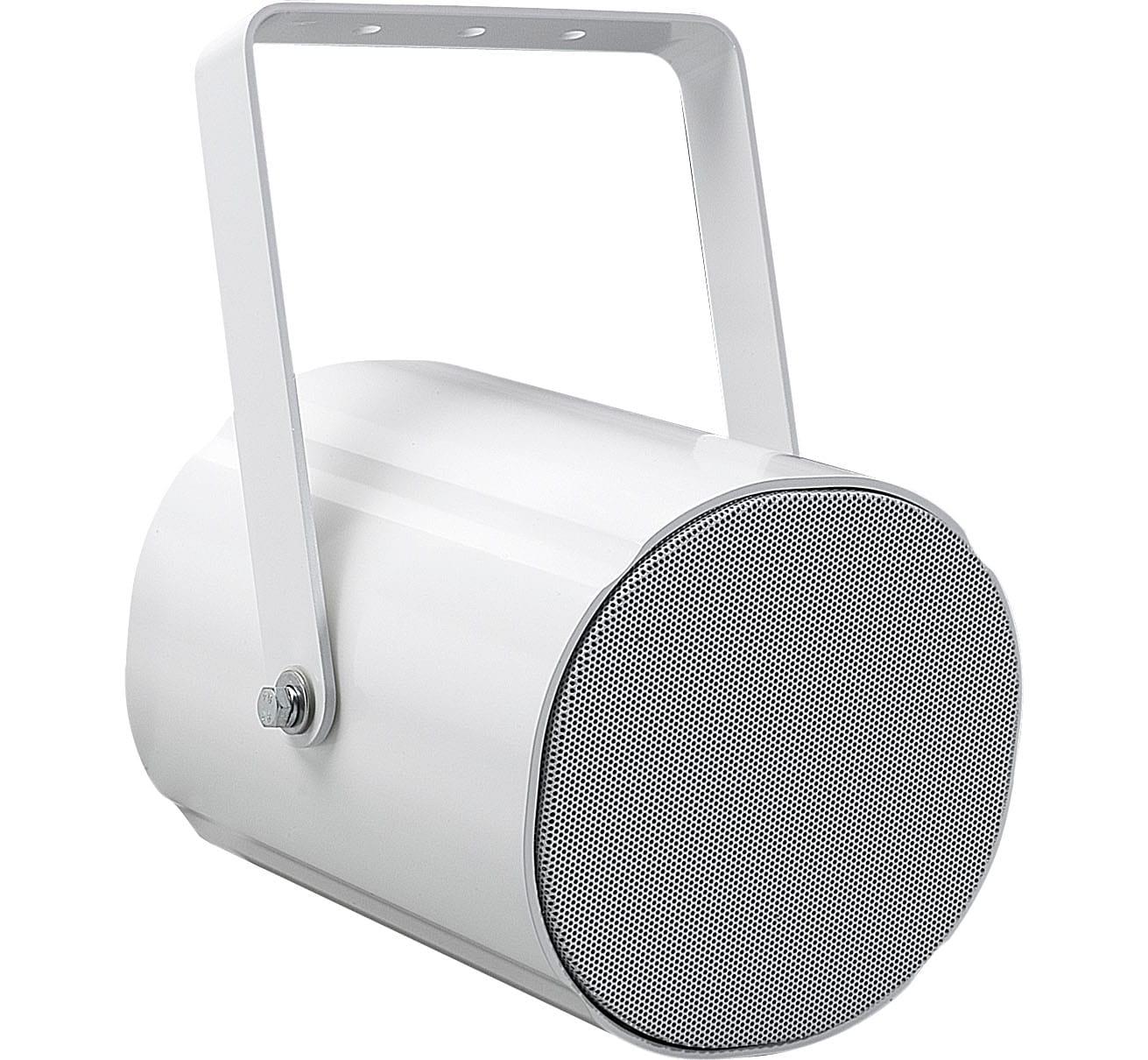

20 W unidirectional sound projector EN 54, metal

582474

Approval as per EN 54-24, 0359/CPD/0172

This unidirectional 20 W sound projector features a broad frequency response and a high degree of efficiency. Its IP 65 protection class guarantees universal applicability indoors as well as outdoors.
Its modern design and its excellent sound quality make this sound projector eminently suitable for use in hotels, shopping malls, airports, railway platforms, etc. The mounted thermal fuse as well as the ceramic terminal enable application in compliance with BS5839 Part 8.

Scope of delivery:
Pre-mounted fire-resistant, 6-wire connection cable, length 0.90 m
Includes mounting bracket and strap / body attachment (please specify the assembly instructions)!
Rated Power
20 W
Transformer power taps
20 / 10 / 5 / 2,5 W
Sensitivity EN 54-24, 1 W / 1 m
89 dB
Sensitivity EN 54-24, max 1 m
102.5 dB
Transmission range
150 ... 20000 Hz (-10 dB))
Dispersion angle
214° (H), 219° (V) @ 1 kHz
Ambient temperature
-25 °C ... 55 °C
Type of protection
IP 65
Color
white, similar to RAL 9003
Weight approx. 2.65 kg

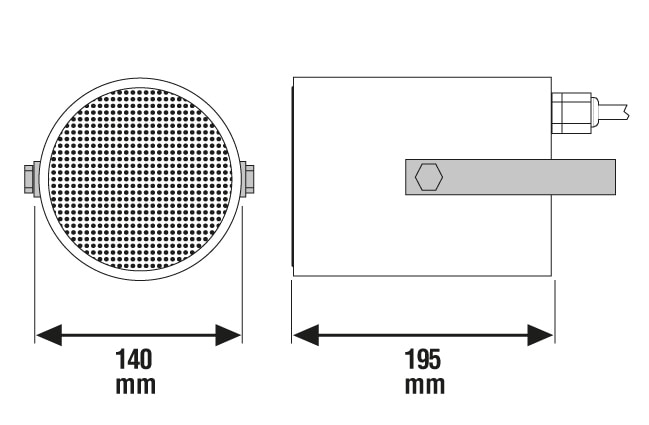

Dimensions
Ø: 140 mm D: 195 mm
Declaration of Performance CPR-DoP-2014002
