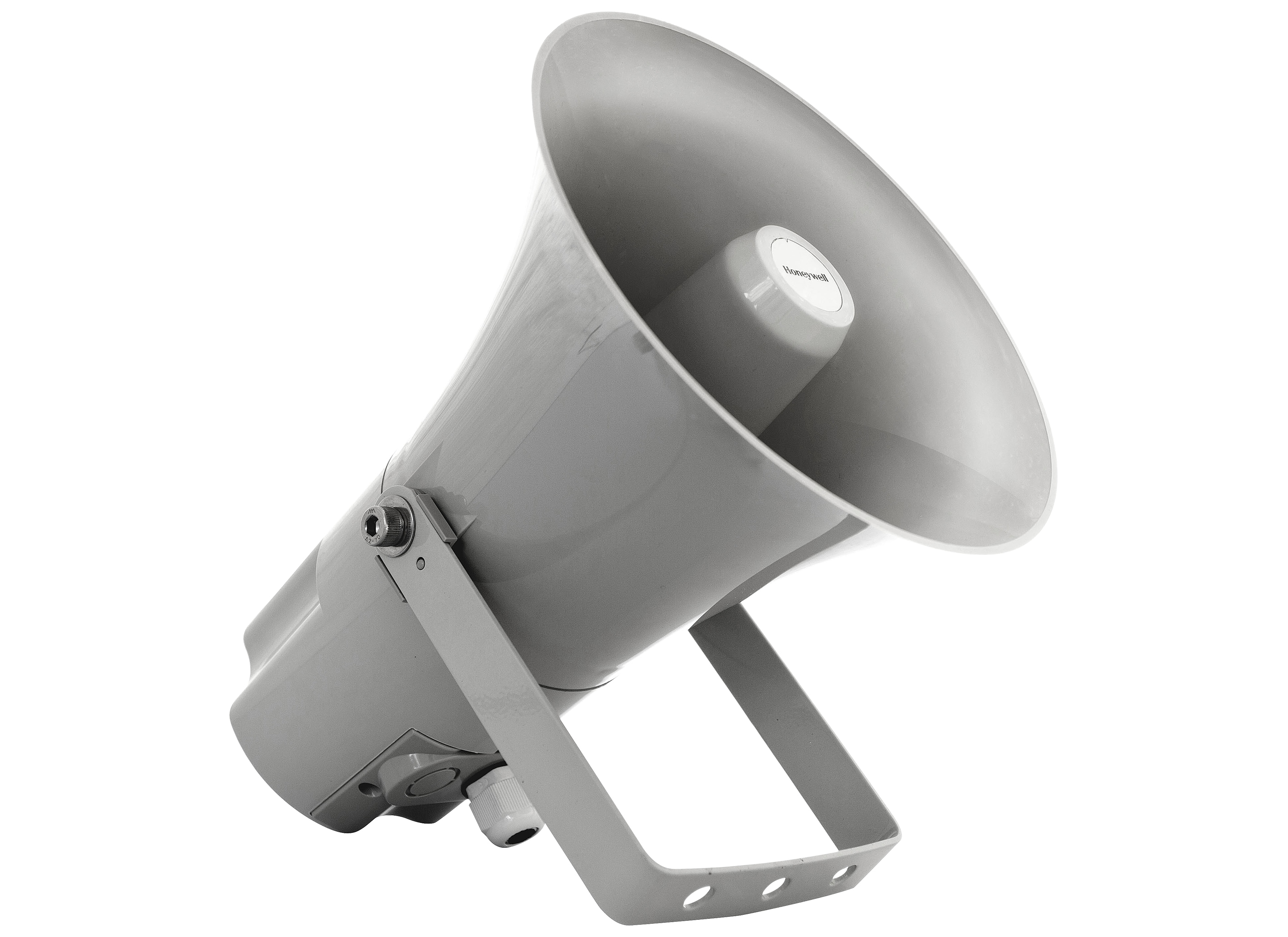

15 W horn loudspeaker EN 54, ABS

582479

Approval as per EN 54-24, 0359/CPD/00456

The horn loudspeaker offers a high sound pressure and long-lasting weather resistance, ideal for use in industrial projects. The IP 66 high protection class guarantees operational safety even under the most difficult conditions. The loudspeaker is also equipped with a ceramic terminal block and a thermal fuse for increased safety. The shock-resistant ABS enclosure according to UL94V0 ensures long-lasting stability. A U-shaped non-corrosive universal bracket is enclosed for flexible mounting. The cable connection is done without need for an additional junction box. The flexible power adjustment can be easily done with the rotary switch on the back side of the loudspeaker. The loudspeaker is also suitable for outdoors use. The loudspeaker complies with standard BS 5859 Part 8, and is certified in accordance with EN 54 Part 24.
Rated Power
15 W
Transformer power taps
15 / 10 / 5 W
Rated impedance
0.667 / 1 / 2 kΩ
Sensitivity EN 54-24, 1 W / 1 m
105 dB
Sensitivity EN 54-24, max 1 m
117 dB
Transmission range
300 ... 16000 Hz (-10 dB)
Dispersion angle
124° (H) / 143° (V) @ 1 kHz
Ambient temperature
-25 °C ... 55 °C
Storage temperature
-40 °C ... 70 °C
Type of protection
IP 66
Material
ABS
Color
light grey, similar to RAL 7035
Weight approx. 2.05 kg
Dimensions
Ø: 213 mm D: 265 mm
Declaration of Performance CPR-DoP-2014005
