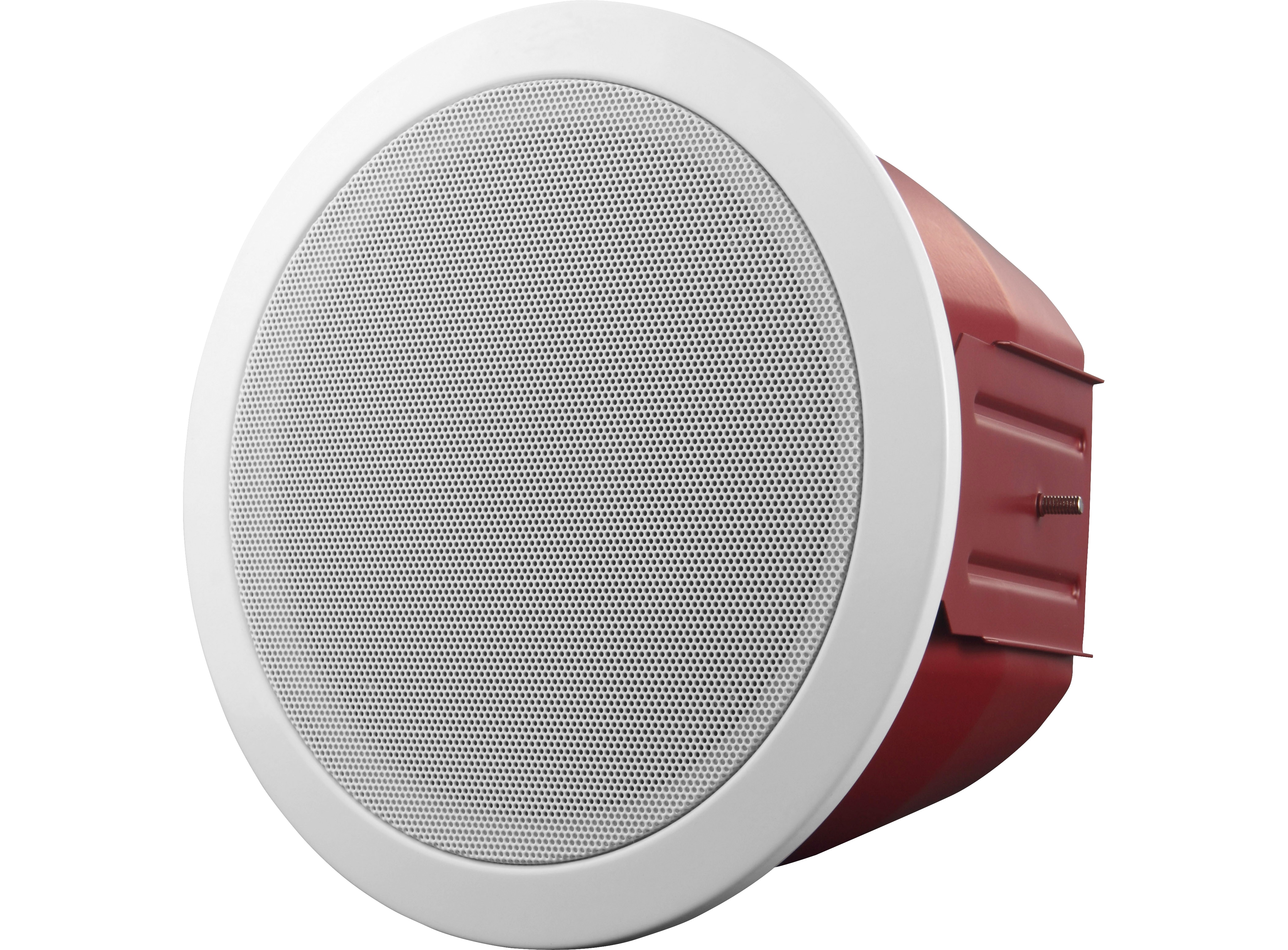

6 W 5" ceiling loudspeaker EN 54 with fire dome, metal

LSC-506

Approval as per EN 54-24, 0359/CPD/00138

This voice alarm ceiling loudspeaker is specifically designed for use in buildings where performance of systems for voice evacuation announcements is governed by regulations. It is designed for flush mounting in suspended ceiling and ideal for even sound distribution. The appearance and neutral white RAL 9003 color have been selected to be unobtrusive in virtually all interiors. The fire dome increases protection of the cable termination. The driver unit is impregnated against moisture. For additional safety, this EN 54-24 ceiling loudspeaker features a ceramic terminal block and a thermal fuse.

Rated Power
6 W
Transformer power taps
6 / 3 / 1,5 / 0,75 W
Rated impedance
1,7 / 3,3 / 6,7 / 13 kΩ
Sensitivity EN 54-24, 1 W / 1 m
91 dB
Sensitivity EN 54-24, max 1 m
99 dB
Transmission range 180 ... 20000 Hz (-10 dB)
Dispersion angle 173° (H), 174° (V) @ 1 kHz
Ambient temperature -25 °C ... 55 °C
Storage temperature -40 °C ... 70 °C
Air humidity
< 95 %
Material Metal
Color
white, similar to RAL 9003 / red similar to RAL 3000
Weight approx. 1.29 kg

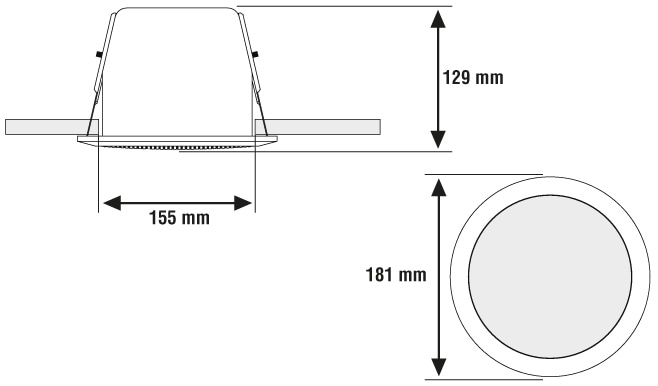

Cut-out size (Ø min.) 155 mm
Dimensions Ø: 181 mm D: 129 mm
Declaration of Performance CPR-DoP-2013002
