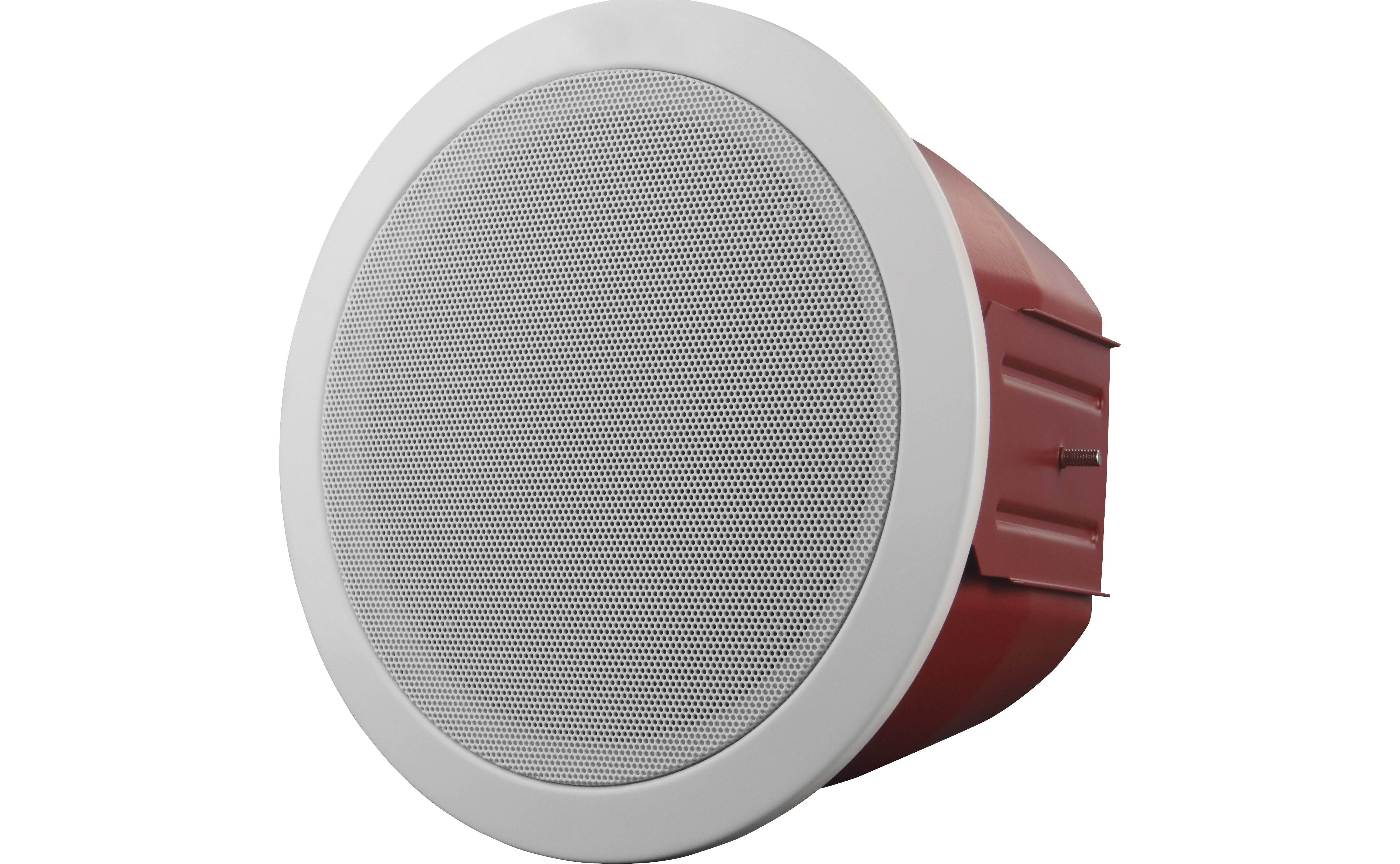

24 W 6.5" 2-way ceiling loudspeaker EN 54, metal

582480

Approval as per EN 54-24, 0359/CPD/00455

The 6.5" ceiling loudspeaker with its 2-way system features an excellent sound quality. It offers a broad frequency range and a high sound pressure level, thereby guaranteeing excellent music and speech reproduction. It is eminently suitable for demanding sound applications such as bistros, restaurants, hotels, and many other public locations. The ceramic terminal block and the thermal fuse increase the protection for the loudspeaker lines. The driver unit is impregnated against moisture. The loudspeaker complies with standard BS 5859 Part 8, and is certified in accordance with EN 54 Part 24.
Rated Power
24 W
Transformer power taps
24 / 12 / 6 / 3 W
Rated impedance
0,42 / 0,83 / 1,67 / 3,33 kΩ
Sensitivity EN 54-24, 1 W / 1 m
91 dB
Sensitivity EN 54-24, max 1 m
103 dB
Transmission range
120 ... 20000 Hz (-10 dB)
Dispersion angle
165° (H) / 167° (V) @ 1 kHz
Ambient temperature
-20 °C ... 55 °C
Storage temperature
-40 °C ... 70 °C
Air humidity 0 ... 95 %
Material Metal
Color white, similar to RAL 9003
Weight approx. 2.25 kg

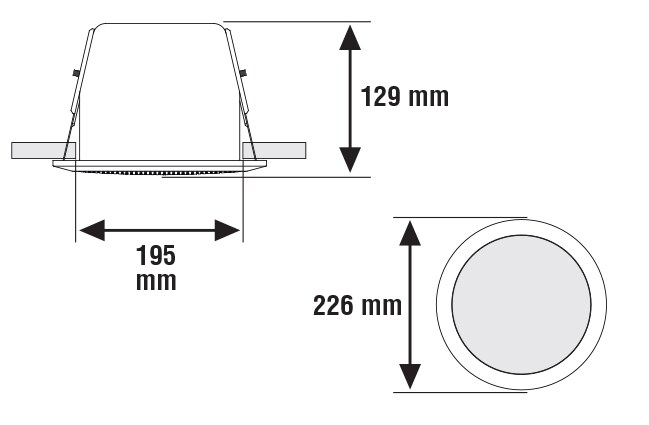

Cut-out size (Ø min.) 195 mm
Dimensions Ø: 226 mm D: 129 mm
Declaration of Performance CPR-DoP-2014004
