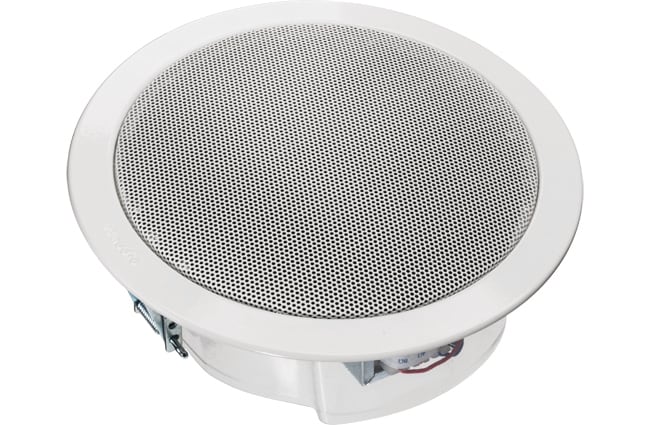

EN 54.SAFE, 6W, 6.5”, built-in metal speaker

582408-SAFE

Approval as per EN 54-24, 1438/CPD/0233

With its flat form, these novel type DL-E 06-165/T-EN 54.SAFE is optically a good fit for the ceilings for which they were designed. The SAFE versions are equipped with a premounted ceramic terminal and a thermal fuse. The 6.5" broadband loudspeaker chassis, which is impregnated against humidity, distinguishes itself by way of its high degree of effectiveness. Typically, the 6 W, 3 W, or 1.5 W power setting. The spring latch (3 pieces) guarantees uncomplicated and quick mounting onto The ceiling. In the standard version, a protective cover made out of a synthetic material is mounted to the back side of the loudspeaker, but a fire dome certified according to the EN 54 Part 24 standard is optionally available as well. This is also necessary in order to mount this SAFE-type also in projects which require compliance with BS 5839-8.

Rated Power
6 W
Transformer power taps
6/3/1.5 W
Sensitivity EN 54-24, 1 W / 1 m 97.8 dB
Sensitivity EN 54-24, max 1 m
105.3 dB
Transmission range 300 ... 19300 Hz (-10 dB)
Dispersion angle 180° @ 1kHz
Ambient temperature -10 °C ... 55 °C
Color
white, similar to RAL 9016
Weight approx. 0.68 kg
Cut-out size (Ø min.) 165 mm
Dimensions Ø: 199 mm D: 76 mm
Declaration of Performance 012-13

Optional:

  • 582408.FD Firedome (FE 165.1)
