Ceilling Speaker DL-E 06-130/T-EN

582407

Approval as per EN 54-24, 1438/CPD/0233

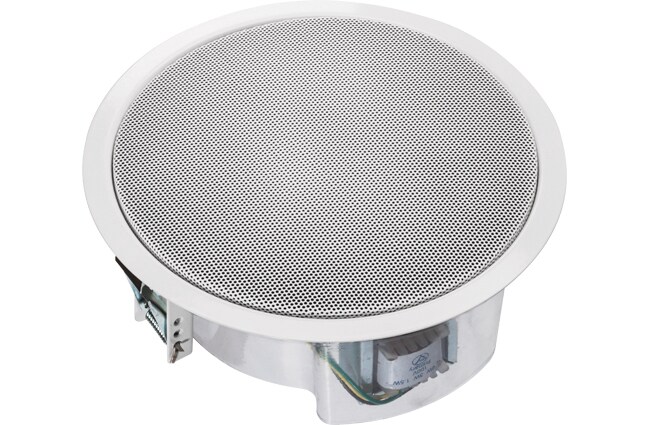

This novel EN54-24 certified recessed ceiling loudspeaker for metal ceilings (RAL 9010) visually blends into the ceiling due to its flat design. The moisture-impregnated 5" broadband loudspeaker chassis is characterized by high efficiency. Adaptation to 6 W, 3 W or 1.5 W is implemented in the usual form on the loudspeaker. The spring-loaded connector (two included) guarantees simple, quick mounting in the ceiling. By default, a plastic protective cover is mounted on the back of the loudspeaker, but a fire dome, which is also EN54-24 certified, is available as well. If the loudspeaker will be used as specified by BS 5839-8, it is also possible to order and install an optional thermal fuse as well as a ceramic connector clamp.

Scope of Delivery
Ready-to-install recessed ceiling loudspeaker

Loading capacity
6 W
Transformer power taps
6/3/1.5 W
Sensitivity EN 54-24, 1 W / 1 m
88.9 dB
Sensitivity EN 54-24, max 1 m
96.7 dB
Transmission range
104 ... 17200 Hz
Dispersion angle
180° (H), 180° (V)
Ambient temperature -10 °C ... 55 °C
Color
white, similar to RAL 9010
Weight approx. 0.51 kg
Ceiling opening (Ø min.) 156 mm
Dimensions Ø: 181.5 mm D: 66 mm
  • 582407.FD Fire dome (FE 130.1) for recessed ceiling loudspeaker Part No. 582407
  • 581286 Ceramic clip and thermal fuse
