6 W 4" cabinet loudspeaker EN 54, metal

582470

Approval as per EN 54-24, 0359/CPD/00174

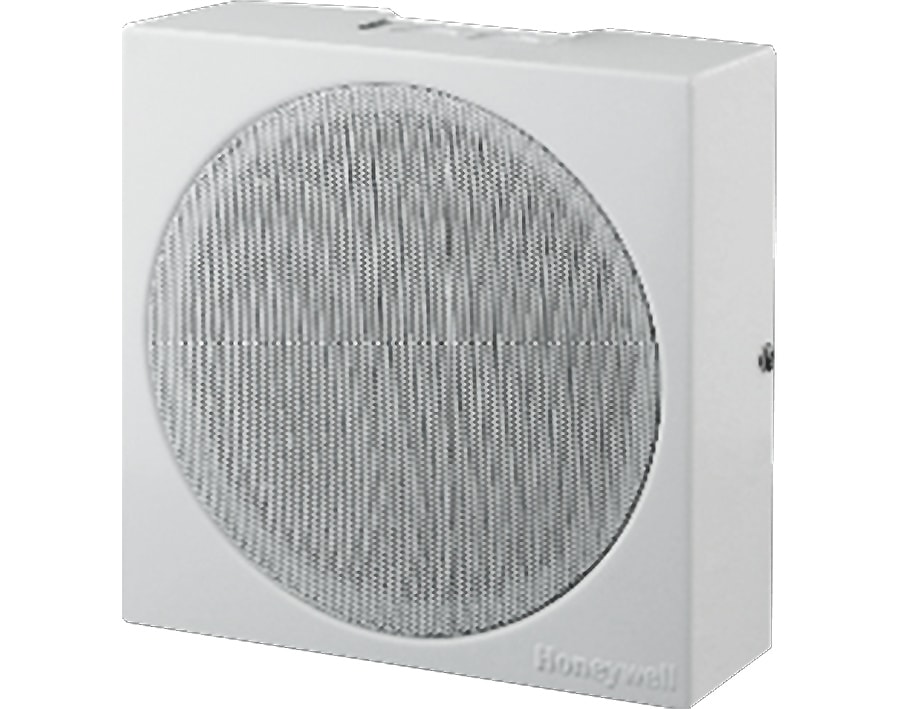

The cabinet loudspeaker offers a broad frequency range and a high sound pressure level for an accurate and intelligible transmission of the evacuation messages, including an excellent sound reproduction. It is ideal for an even dispersion of sound in public and commercial buildings. Its low-profile, white color design blends easily with most interiors in locations such as hotels, schools, conference rooms, cinemas, amusement parks, factories, and trade fair halls. The driver unit is impregnated against moisture.

This cabinet loudspeaker complies with the BS 5859-8 standards, and is certified according to the EN 54-24 standard.
Rated Power
6 W
Transformer power taps
6 / 3 / 1,5 / 0,75 W
Rated impedance
1,7 / 3,3 / 6,7 kΩ
Sensitivity EN 54-24, 1 W / 1 m
91 dB
Sensitivity EN 54-24, max 1 m
99 dB
Transmission range
300 ... 15000 Hz (-10 dB)
Ambient temperature
-25 °C ... 55 °C
Storage temperature
-40 °C ... 70 °C
Air humidity
< 95 %
Material
Metal
Color white, similar to RAL 9003
Weight approx. 1.56 kg

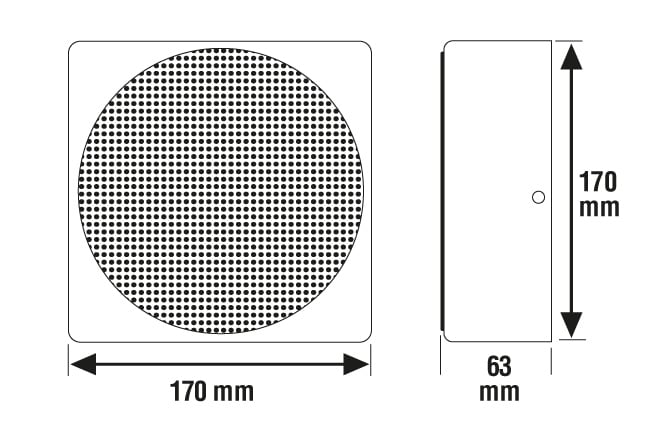

Dimensions L: 170 mm W: 170 mm D: 63 mm
Declaration of Performance CPR-DoP-2013002
