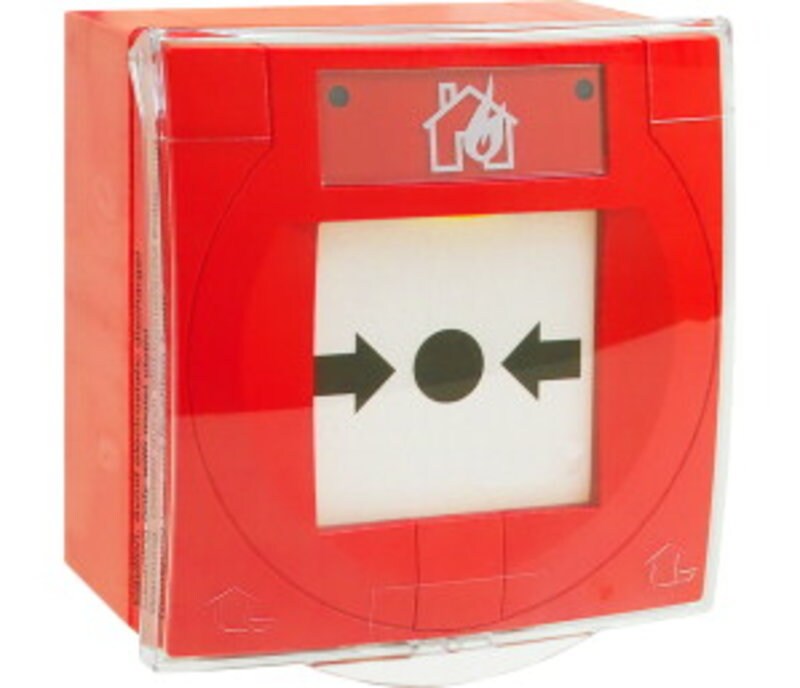

Small IQ8MCP Ex (i) IP 66/67, red with glass pane

804961.EX

Approval: G 214116

The small compact fully addressable (esserbus) intrinsically safe MCP version has detector housing, surface mount housing, transparent cover, and alarm indicator. For use in the esserbus® and powered loop with soft address coding, alarm latch and alarm indicators. The detector operates like a conventional MCP without the bus connection.

IQ8MCP without loop isolator, especially for use in ex-areas.

Suitable for use in damp rooms thanks to the high IP 66/67 IP protection.

Surface mounting housing is provided with break-out cable entries for M20 cable glands (optional) for easy installation.

Features & Benefits
Technical Data
Accessories
Documents

High IP protection class IP66 & IP67
Triple key function (test, open, reset)
Plug-in terminals
Out of Order” indication of an inoperative alarm by flipping over the glass pane

Additional Information:Use M20 cable glands with 15 mm connecting thread length and sealing ring, e.g. blueglobe by Pflitsch (cable gland Part No.: bg 820PA/sealing ring Part No.: DRF 220).
For detailed information on installation and operation, see documentation Part No. 798920.
For operation with individual addressing ex-barrier Part No. 804744 must be used for use in zone 1 and zone 2!

Scope of Delivery:
1 x glass pane 704960
1 x key 704966
1 x surface mounting housing
1 x transparent cover

Operating voltage	8 ... 42 V DC
Quiescent current @ 19 V DC	approx. 45 μA
Alarm display	red LED and yellow actuation indicator
Operation indicator	LED, green
Application temperature	-20 °C ... 70 °C
Ambient temperature (Ta)	-20 °C ... 70 °C
Storage temperature	-30 °C ... 75 °C
Max. Output current (Io)	10 mA
Max. Input Voltage (Ui)	21 V DC
Max. Input current (Ii)	252 mA
Explosion protection	Ex ib IIC T4 Gb
Connection terminal	max. 1,5 mm² (AWG 30-14)
Type of protection	IP 66 / IP 67
Housing	PC ASA plastic
Air humidity	< 95 %
Color	red, similar to RAL 3020
Weight	approx. 255 g
Detector specification	EN 54-11 : 2001 + A1:2005, Typ A
Dimensions	W: 88 mm H: 88 mm D: 63 mm (with surface mount housing)
