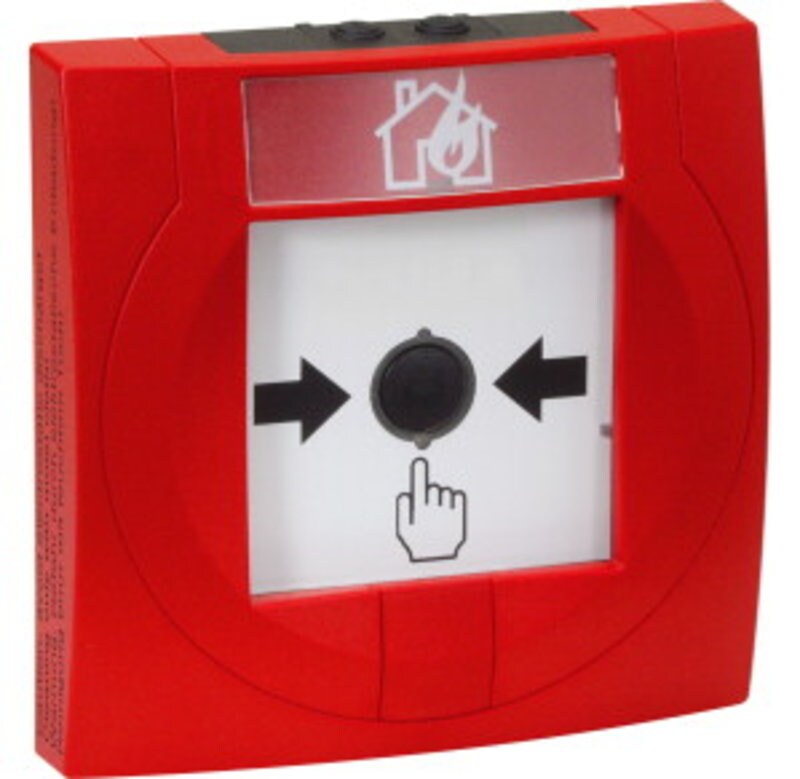

Large Conventional MCP Ex (i), red with glass pane

804920.EX

Approval: G 214113

Standard large intrinsically safe MCP, consisting of electronic module and detector housing, for connection to a conventional zone, especially for use in hazardous areas. Suitable due to the high IP protection up to IP 55 for use in damp rooms.

Features & Benefits
Technical Data
Accessories
Documents

High IP protection up to IP55
Plug-in terminals
Standard keys with double function: Open, reset
Service key with triple function: Test, open, reset
"Out of Order" marking an inoperative detector by turning the enclosed operating front foil

Additional Information:
For detailed information on installation and operation, see documentation part no. 798920. For operation with standard groups ex-barrier item no. 764744 must be used in zone 1 and zone 2!

Scope of Delivery:
1 x glass pane 704960
1 x key 769910
1 x Manual call point housing, red
1 x IP 55 shrink sleeve

DATA ACCORDING TO ATEX
Max. Input Voltage (Ui)	21 V DC
Max. Input current (Ui)	252 mA
Ambient temperature (Ta)	-20 °C ... 70 °C
EC-type examination certificate	TÜV 14 ATEX 150860
Ex-category	II 2G (with Ex barrier Part-No. 764744 / 804744)
Explosion protection	Ex ib IIC T4 Gb
Specification	EN 60079-0:2012 + A11:2013 / -11:2012
COMMON TECHNICAL DATA
Operating voltage	8 ... 30 V DC
Alarm current @ 9 V DC	typ. 9 mA
Alarm display	LED,red
Connection terminal	max. 1,5 mm² (AWG 30-14)
Application temperature	-20 °C ... 70 °C
Storage temperature	-30 °C ... 75 °C
Air humidity	< 95 % (non condensing)
Type of protection	IP44, IP55 with shrink sleeve
Material	PC ASA plastic
Weight	approx. 236 g (in housing)
Color	red, similar to RAL 3020
Detector specification	EN 54-11 : 2001 + A1:2005, Typ A
Dimensions	W: 133 mm H: 133 mm D: 36 mm
Declaration of Performance	DoP-21415141219
