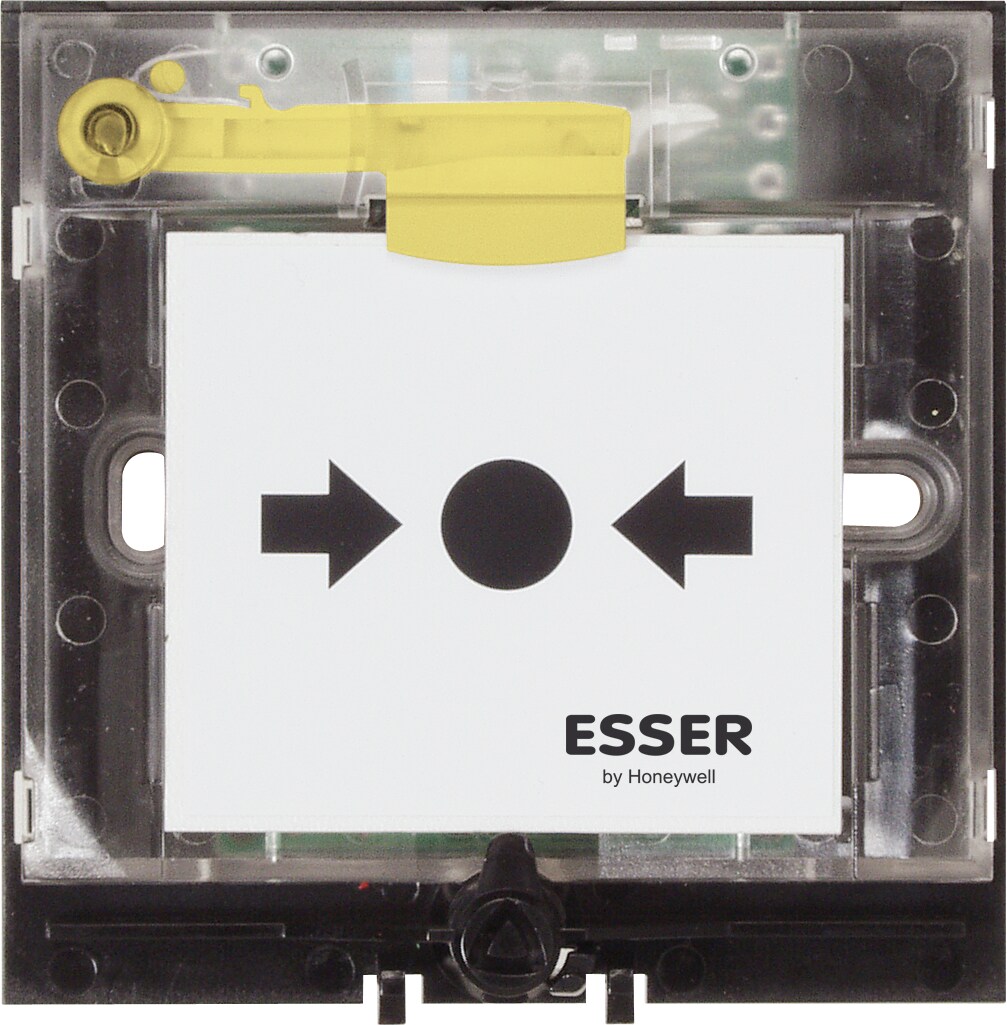

IQ8MCP electronic module w/o isolator, with relay

804956

Approval: VdS

Same as 804955, but with relay and without loop isolator or connection possibility for standard manual call points. The relay output is activated by the triggering of this detector. The relay output can be programmed in the IQ8Control and System 8000 FACP customer data as a control group.

Features & Benefits
Technical Data
Accessories
Documents

Alarm display	LED, red and yellow flag
Alarm current w/o communication curtain	approx. 18 mA
Connection terminal	max. 2.5 mm² (AWG 26-14)
Application temperature	-20 °C ... 70 °C
Operation indicator	LED, green
Operating voltage	8 ... 42 V DC
Weight g	approx. 78 g
Contact load	30 V DC / 1 A
Storage temperature	-30 °C ... 75 °C
No. of detector/zone	max. 127 detectors per loop (as per VdS)
Air humidity	< 95 % (non-condensing)
Quiescent current @ 19 V DC	approx. 45 μA
Type of protection	IP43 (in housing), IP 55 with cover 704965
VdS-Nr	G 205132
