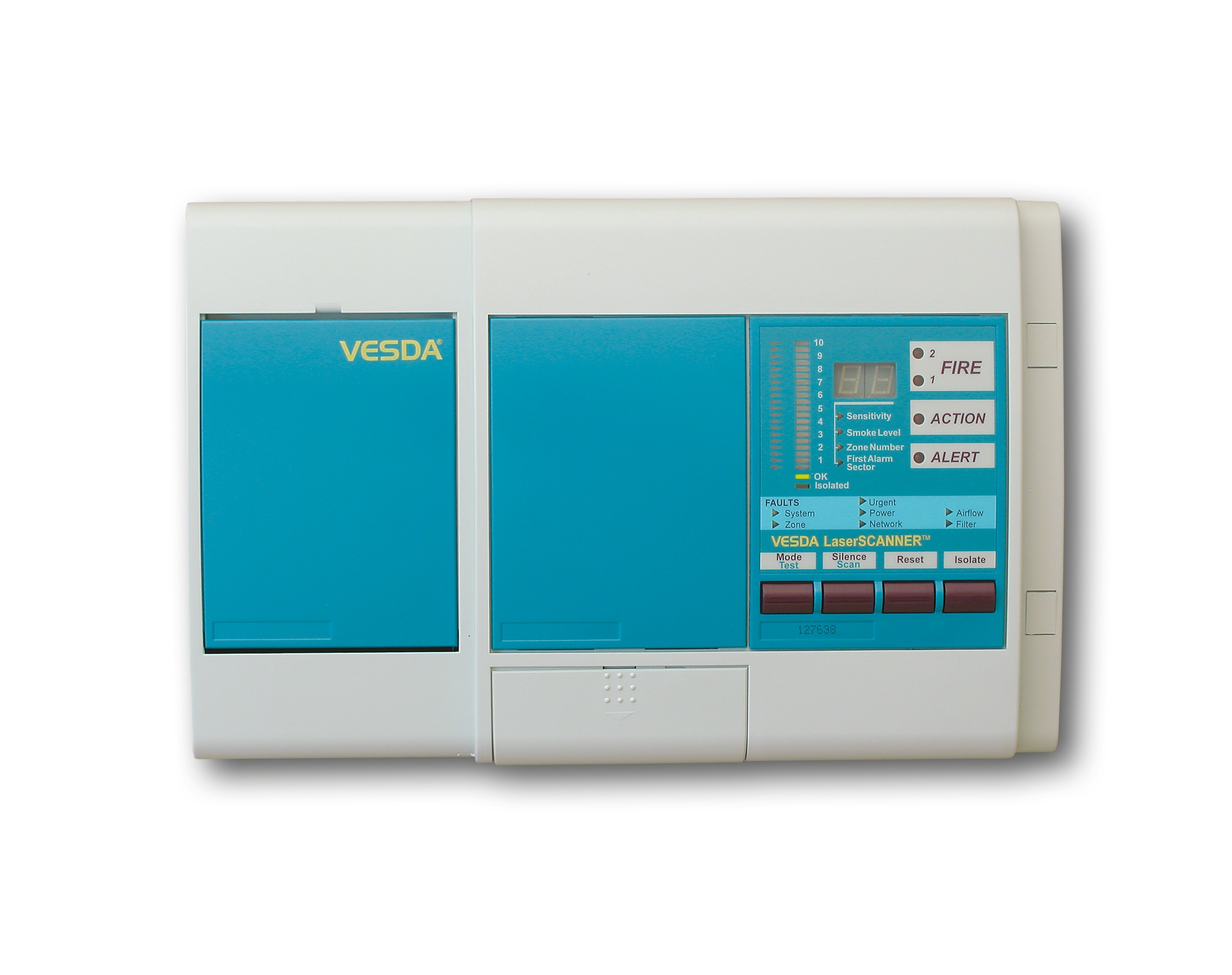

VESDA VLP

VLP-400

Approval: G298024

The VESDA VLP detector has an alarm sensitivity range of 0.005%–20% obscuration/m (0.0015%–6.25% obscuration/ft). The VLP is classed as a “Very Early Warning Smoke Detector”, which means that it detects fire at the earliest possible stage and reliably measures very low to extremely high concentrations of smoke.
The detection chamber uses a stable Class 1 laser light source and carefully positioned sensors to achieve the optimum response to a vast range of smoke types. The status of the detector, and all alarm, service and fault events, are transmitted to displays and external systems via VESDAnet.

Features & Benefits
Technical Data
Accessories
Documents

Wide sensitivity range
Laser based smoke detection
4 configurable alarm levels
High efficiency aspirator
Four inlet pipes
Airflow supervisor per sampling pipe
Clean air barrier optics protection
Easy to replace air filter
7 programmable relays
AutoLearn™
Event log – up to 18000 events

Additional Information:
Filter included in detector

Alarm current @ 24 V DC	approx. 390 mA
Operating voltage	18 ... 30 V DC
Weight kg	approx. 4 kg
Air humidity	10 ... 95 % (non-condensing)
Quiescent current @ 24 V DC	max. 340 mA
Type of protection	IP30
Area to be monitored	max. 2000 m²
Ambient temperature	-10 °C ... 38 °C
Dimensions	W: 350 mm H: 225 mm D: 125 mm
Contact load relay	2 A @ 30 V DC NO/NC contacts
Alarm sensitivity	0.005%–20% obs/m
Cable termination	0.2–2.5 sq mm
Max. single pipe length	100 m
Max. total branched pipe length	200 m
Aspirated air temperature	-20 °C ... 60 °C
Specification	EN 54-20, Class A, B, C

VSP-005 VESDA Filter for VLP, VLS, VLF, VLC

Type	Name	Size
Promotional - Product Data Sheets
	Product Data Sheet VESDA VLP Version: 04.2017	194 KB
