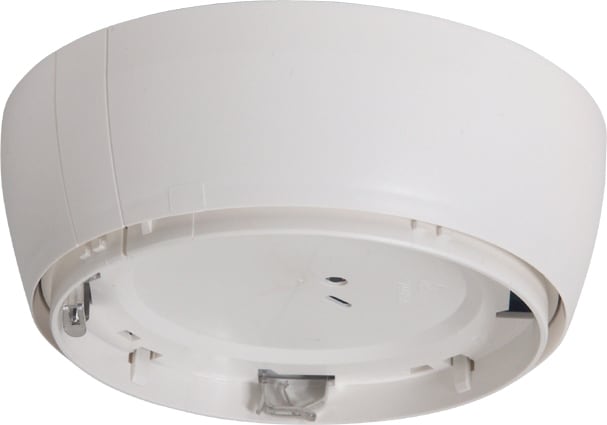

IQ8Wireless detector base

805593.10

Approval: VdS

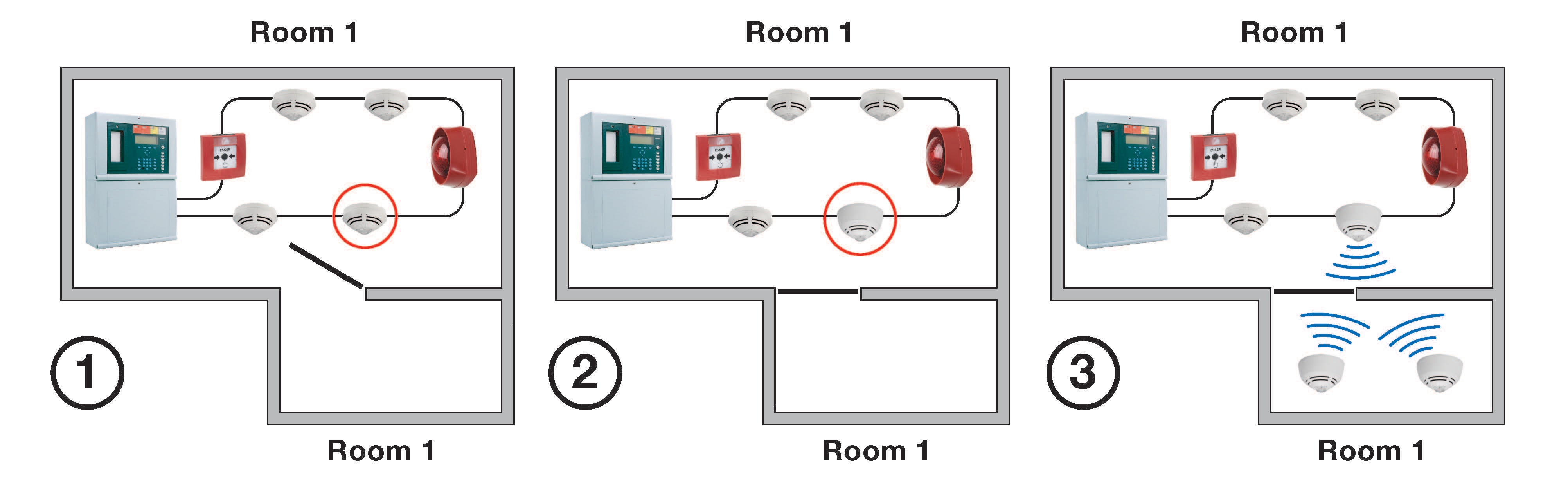

With the IQ8Wireless base, the wireless component is located in the base onto which the respective fire detector is placed. The wireless base facilitates the connection of the IQ8Quad TM, TD, O, O²T and OTG detectors via a wireless transmission line to the esserbus/esserbus-PLus and integrates them via wireless transponder or wireless gateway into the fire alarm system.
A maximum of 32 radio bases per wireless transponder and/or 10 per radio gateway can be allocated.
The wireless detector base suitable for:
  • Fixed heat detector (Part No. 802171, 802177)
  • Rate-of-rise heat detector (Part No. 802271, 803271)
  • Optical smoke detector (Part No. 802371, 803371)
  • O²T multisensor fire detector (Part No. 802374, 803374)
  • OTG multisensor fire detector (Part No. 802473)

The wireless detector base features
  • Individual detector identification on the control panel
  • Regular functionality check for each detector
  • Alarm and operation display on the detector
  • Alarm and fault transmission in accordance with EN 54-2
  • Easy detector or battery replacement with detector removal tool
  • Fault signal when the mounted wireless base and the inserted detector are removed
  • Permanent monitoring of battery voltage
  • Up to 3 years battery life depending on detector type and environmental conditions

Additional Information:
The batteries to be used are components of the device approval according to EN 54 and are specified by the manufacturer. With the IQ8Wireless radio components, only the approved batteries with Part No. 805597 may be used. Use of batteries other than those specified by us automatically voids the product’s device approval (VdS-approval) and may not be used for example in Germany in fire alarm systems under legal building regulations.

*The battery operating time is dependent on the type of detector/device used, as well as the application temperature and additional surrounding conditions. It can be substantially reduced by increased current consumption of the wireless devices in the case of alarm, wireless interference or poor transmission, or even possibly through contact resistance at the contacts. Please note important instructions for usage of batteries in manual Part No. 798941.10 (available at the website).

Scope of Delivery:

4 x lithium batteries 3.6V (Part No. 805597)
Application temperature -5 °C ... 55 °C
Operating voltage 4 x 3.6 V batteries
Battery operating time approx. 3 years*
Color white, similar to RAL 9010
Frequency band 1 433 MHz with 16 channels
Frequency band 2 868 MHz with 7 channels
Weight g approx. 315 g (incl. batteries)
Storage temperature -20 °C ... 70 °C (w/o batteries); 15 °C ... 35 °C (with batteries)
Material ABS-V0
Range outside max. 300 m
Range inside max. 30 m
Air humidity < 95 % (non condensing)
Type of protection IP 42
Specification EN 54-18:2005/-25:2008
Current consumption approx. 50 µA
Data transmission speed 19.2 Kbit/s
VdS class F
VdS-Nr G 205112

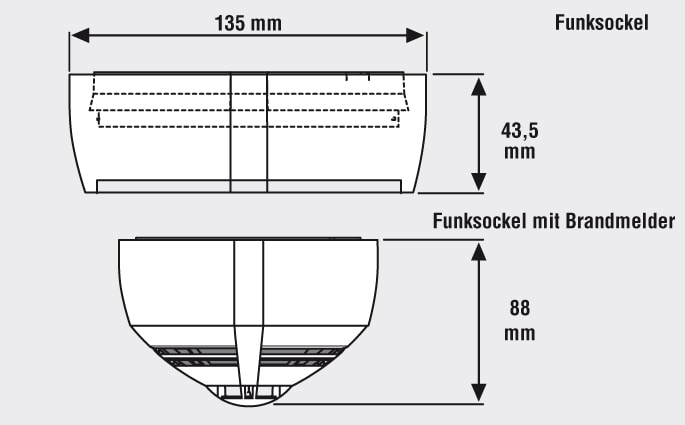

Dimensions ø: 135 mm H: 49 mm (with detector H: 88 mm)
Declaration of Performance DoP-20622130701
  • 805597 4 x 3.6 V lithium batteries
