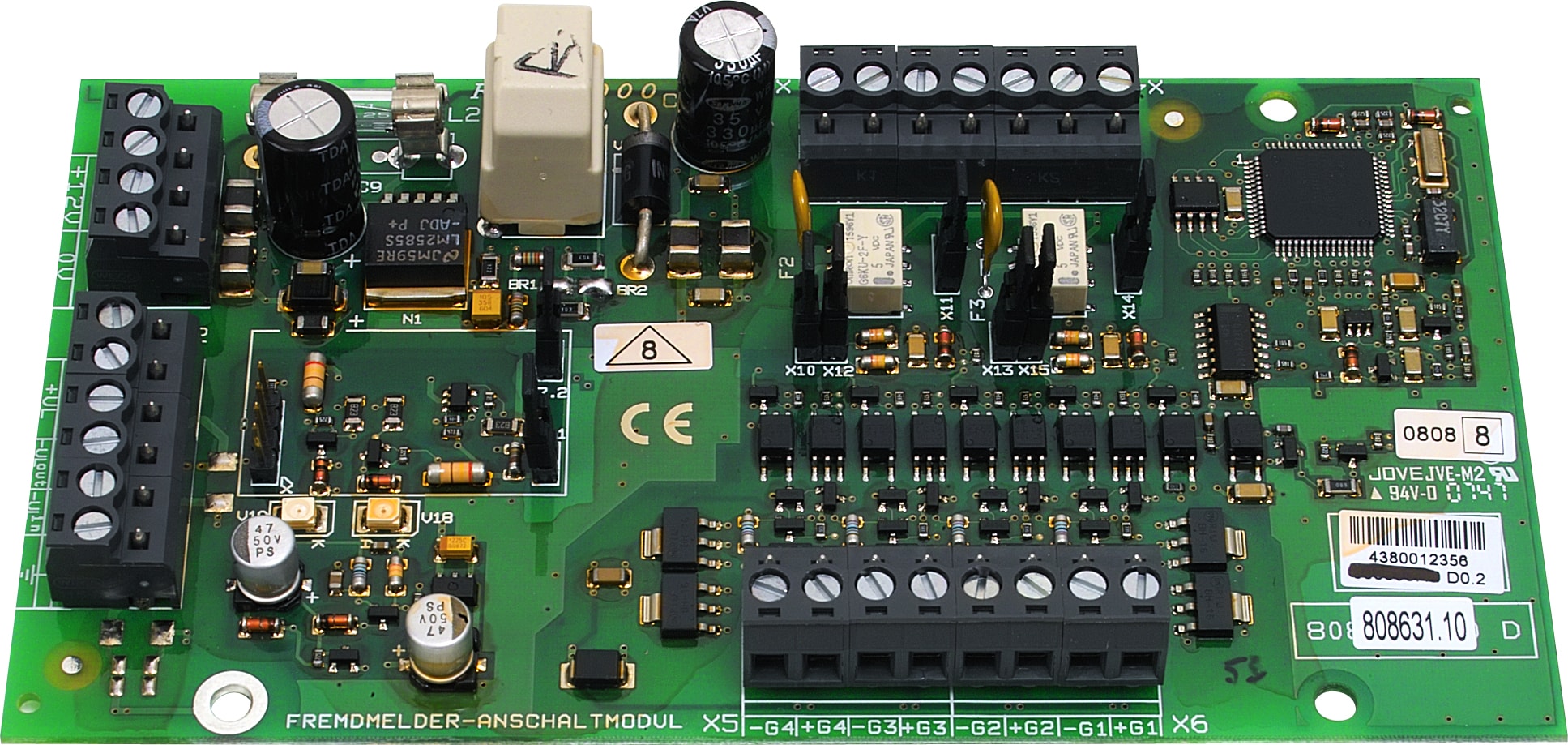

esserbus transponder RZT, 12 V

808631.10

As 808630.10, but rated voltage is 12 V DC, not configurable.

Features & Benefits
Technical Data
Accessories
Documents

Operating voltage	10.5 ... 13.8 V DC
Weight g	approx. 150 g
Contact load relay	max. 30 V DC/1 A or 48 V DC/0,5 A
Storage temperature	-25 °C ... 75 °C
Detector zone current	max. 125 mA
Air humidity	< 95 % (non-condensing)
Relay monitoring	10 kΩ ±40%
Current consumption	max. 1.250 mA
Ambient temperature	-10 °C ... 50 °C
VdS class	F
VdS-Nr	G 207098
Dimensions	W: 150 mm H: 82 mm D: 20 mm

788612 Loop isolator PCB
788600 Housing surface mount, gray
788601 Housing flush mount, gray
788650.10 Housing surface mount, white
788651.10 Housing flush mount, white
788605 Mounting kit
