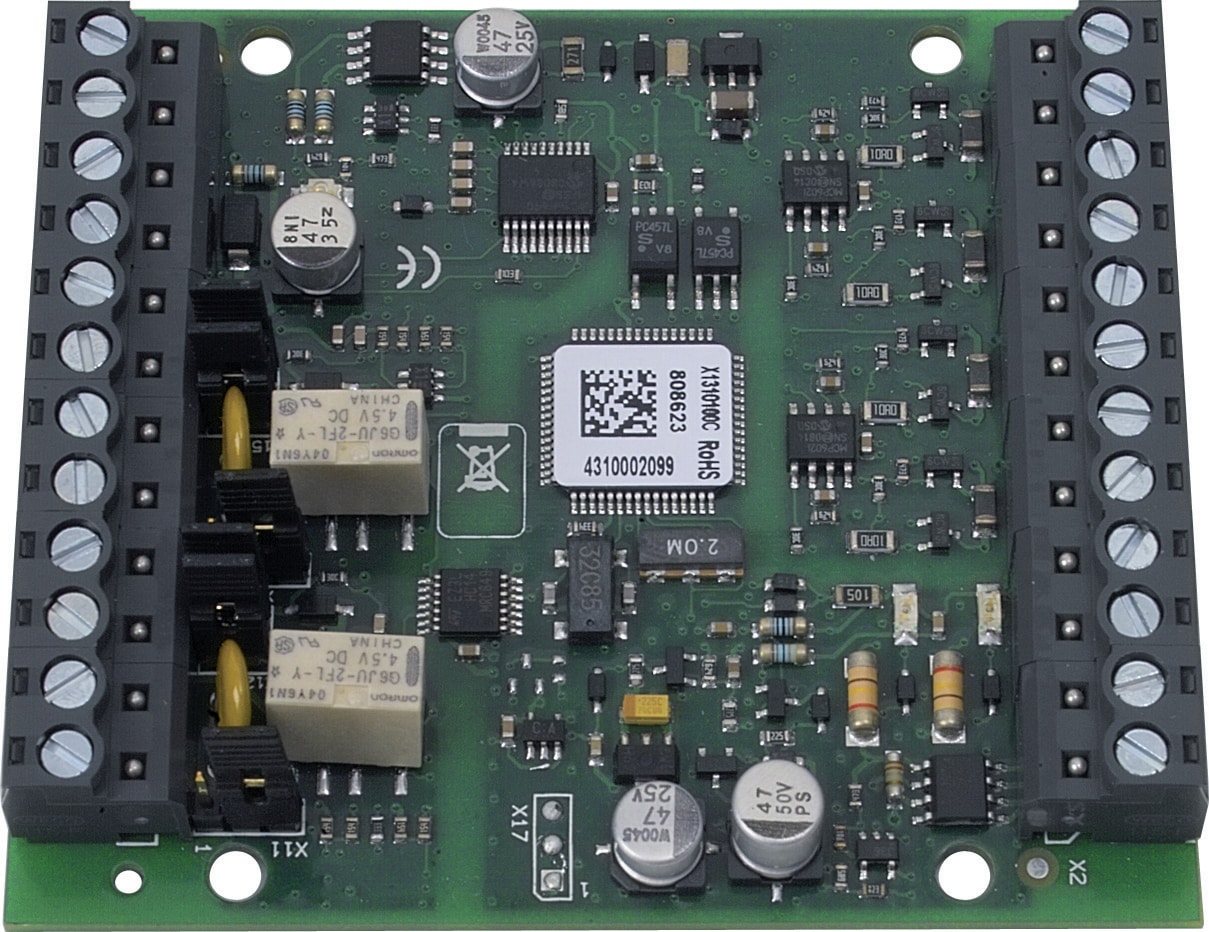

esserbus transponder for UniVario with isolator

808623.10

Approval: VdS

The interface connects max. 2 industrial detectors from the UniVario product range. These detectors are supplied with energy via the 9 V DC group voltage input. For meeting the standard requirements of monitoring, an EOL-UV terminal element is connected to the detector base of the UniVario detector. The interface requires external voltage supply. Additionally, two optionally monitored relay outputs are available.

Features & Benefits
Technical Data
Accessories
Documents

Only one loop address is needed per transponder
Digital input
Loop monitoring in compliance with EN 54-13
Integrated loop isolator
Programmable relay outputs
Programmable relay reset function
Max. 100 transponders per fire alarm control panel
Max. 31 transponders per loop
Max. 127 detector zones per loop
Detector numbers per zone input of the transponder:
Max. 30 conventional detectors (without SOC)
Max. 10 conventional detectors (with SOC)
Max. 10 Manual call points
Max. 10 Technical Alarm Modules (TAM)
Max. 5 audible alarm device (observe calculation table in tools 8000)

Scope of Delivery:
Installation Accessory Pack: 6x10 K, 4x1 K resistors

Operating voltage	10 ... 28 V DC
CE certificate	0786-CPD-20947
Weight g	approx. 28 g
Contact load relay	30 V DC / 1 A
Storage temperature	-25 °C ... 75 °C
Length conductor cable #1	max. 1000 m
Air humidity	< 95 % (non-condensing)
Relay monitoring	EOL-O (or 10 kƒ / ± 40% for unmonitored activation)
Quiescent current @ 12 V DC	approx. 12 mA
Type of protection	IP40 (with housing), IP55 (with high IP housing)
Specification	EN 54-17 : 2005
Current consumption	max. 120 mA @ 12 V DC
Ambient temperature	-10 °C ... 50 °C
VdS-Nr	G 210020
Dimensions	W: 82 mm H: 72 mm D: 20 mm
