VdS approval: G 209138

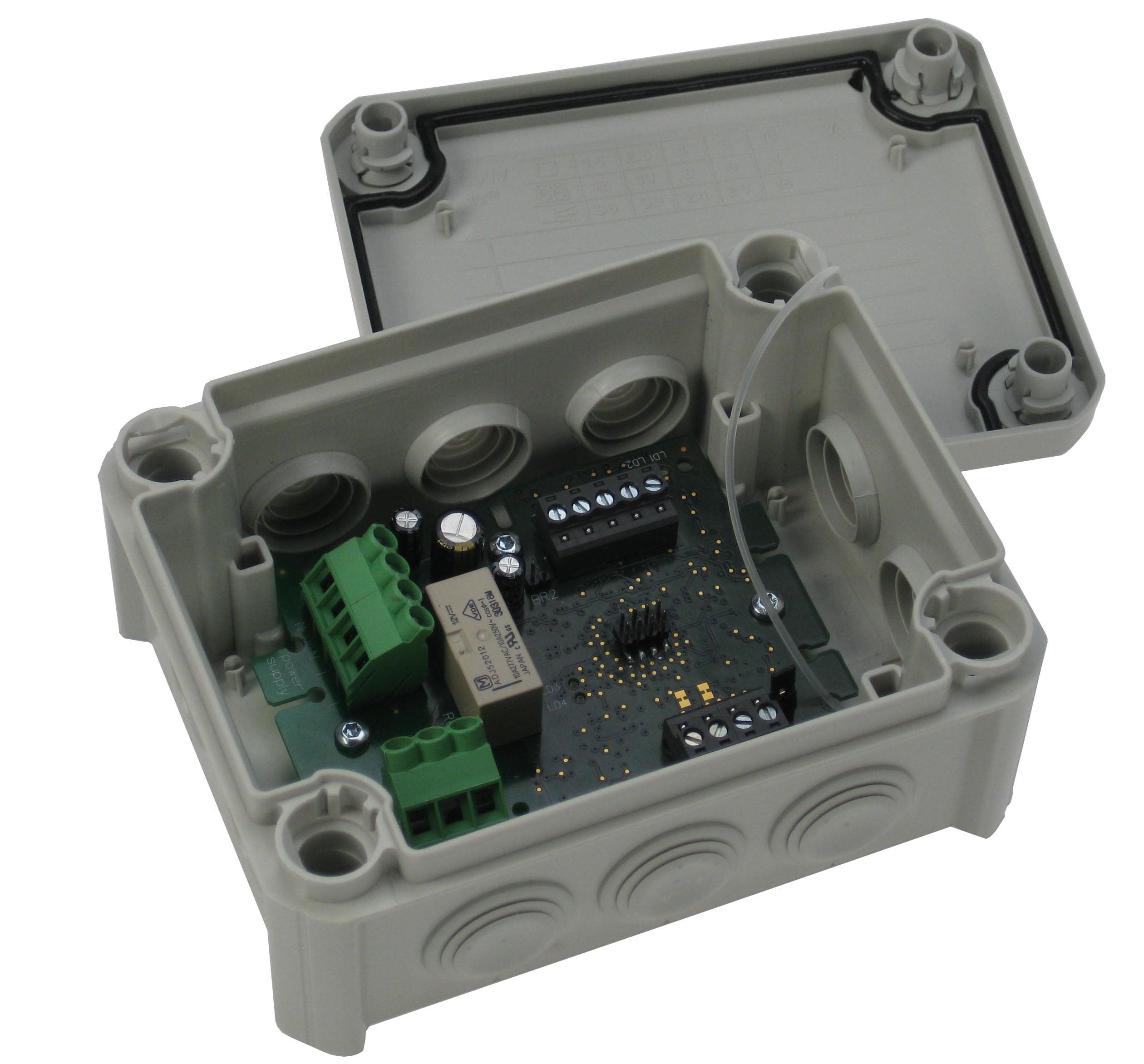

The IQ8FCT LP can be used to control and Monitor external fire control devices like fire dampers or as a technical alarm component (TAL) to monitor an external contact and control external load. The transponder is connected on the esserbus® / esserbus®-PLus loop of fire control system FlexES Control and IQ8Control.

FCT Functionality
In this function a fire control device e.g. fire damper will be connected to the relay output of the IQ8FCT LP and controlled according to the programming with configured runtime. Via the input the end positions of this external device are monitored. If the external device is leaving the set position e.g. at a power loss or is stuck a failure is recognized and indicated at the IQ8FCT LP and the fire control panel. The IQ8FCT LP is also equipped with configurable fail save functionality. If enabled, a communication loss with control Panel results in automatic selfactivation of relay output.

TAL Functionality
Here an external contact can be connected and monitored via the input of the IQ8FCT LP. In case of an activation of this contact, the address and programmed additional text of the corresponding technical alarm module IQ8FCT LP will be displayed.

  • Module for controlling and monitoring Fire protection devices
  • Power supply via the field bus esserbus®
  • Output switching load up to 230 V AC / 16 A
  • Programmable run-time monitoring
  • Configurable fail safe functionality
  • Manual output activation at transponder
  • Robust IP 65 protected surface mount housing
  • Silicone cable entries for fast Installation
Power supply (from esserbus) 14 ... 42 V DC
Quiescent current approx. 45 μA @ 19 V DC
Relay contact max. 16 A resistive or 8 A inductive load of 230 V AC or 30 V DC
surge resistance 250 A @ 10 ms
potential-free or voltage switching / COM/NO/NC
Input monitoring FCT mode: 1 k / 6 k8 / 10 k
TAL mode: 1 k / 10 k (NO) or 6 k8 / 10k (NC)
Input line length 500 m
System limitations max 127 pieces per loop
Connection terminals max. 2,5 mm2 (AWG 26-14)
Application temperature -20 °C ... +70 °C
Storage temperature -30 °C ... +75 °C
Humidity ≤ 95 % rel. humidity (non-condensing)
Protection rating IP 65
Housing PP plastic
Color gray (similar RAL 7035)
Weight approx. 250 g
Dimensions (w x h x d) 150 x 116 x 67 mm
