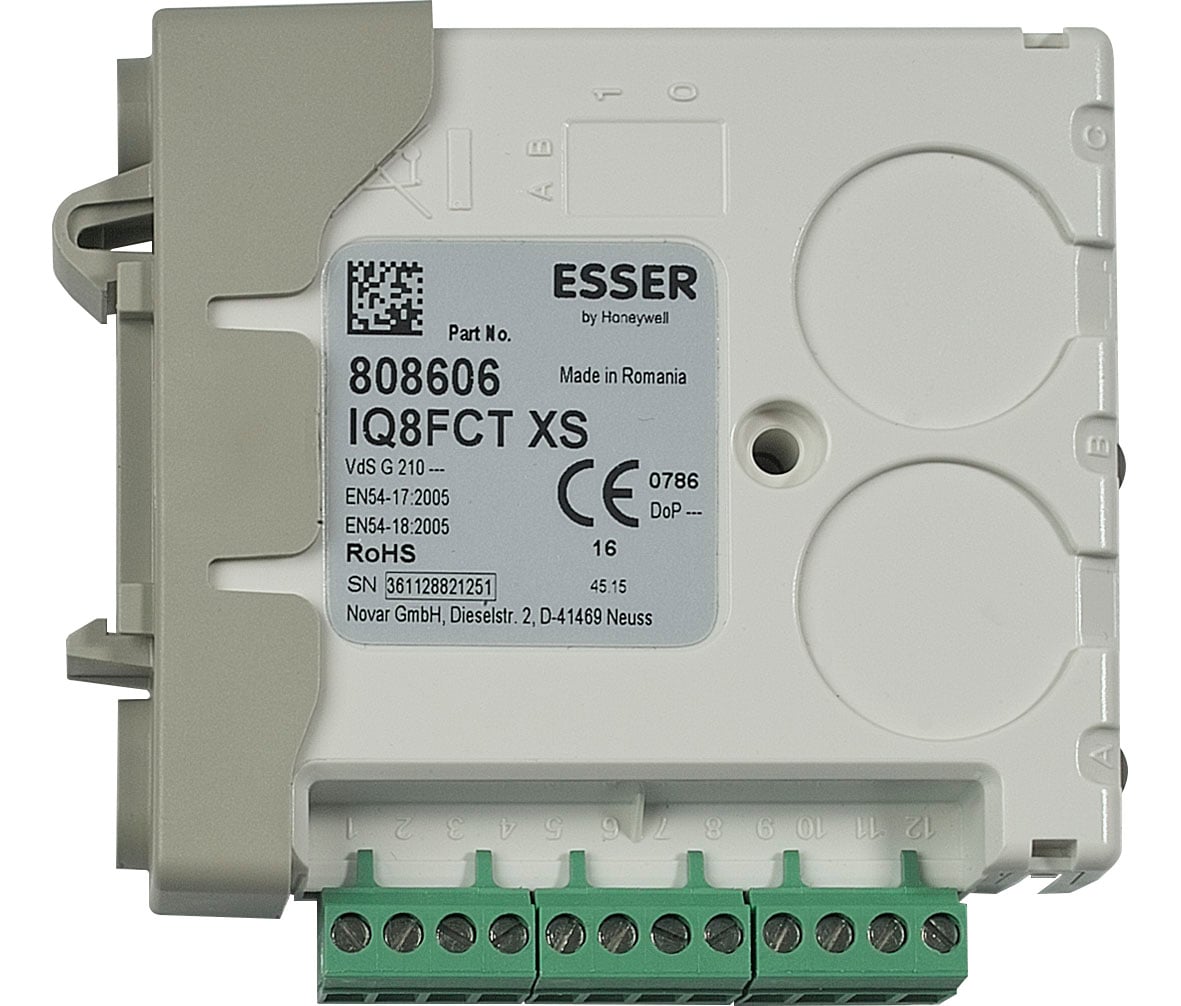

The IQ8FCT XS can be used to control and monitor external fire protection devices like fire dampers or as a technical alarm module (TAL) to monitor an external contact and control external load. The transponder is connected on the esserbus® / esserbus®-PLus loop of fire control system FlexES Control and IQ8Control.

FCT Functionality
In this function a fire control device e.g. fire damper will be connected to the relay output of the IQ8FCT XS and controlled according to the programming with configured runtime. Via the input the end positions of this external device are monitored. If the external device is leaving the set position e.g. at a power loss or is stuck a failure is recognized and indicated at the IQ8FCT XS and the fire control panel.

TAL Functionality
Here an external contact can be connected and monitored via the input of the IQ8FCT XS. In case of an activation of this contact, the address and programmed additional text of the corresponding technical alarm module IQ8FCT XS will be displayed.
  • Module for controlling and monitoring Fire protection devices
  • Compatible with FlexES Control and IQ8Control
  • Power supply via the field bus esserbus®
  • Integrated loop isolator
  • Programmable run-time monitoring (fire dampers)
  • Space-saving installation due to compact design
  • Installation on hat rail 35 mm
  • Optional housing for surface mounting
Power supply (from esserbus) 14 ... 42 V DC
Quiescent current approx. 45 μA @ 19 V DC
Relay contact max. 1 A / 30 V DC or AC
potential-free / COM /NO /NC
Input monitoring FCT mode: 1 k / 6 k8 / 10 k
TAL mode: 1 k / 10 k (NO/NC)
Input line length 500 m
Alarm indicator red LED
Operation indicator green LED
System limitations max 127 pieces per loop
Connection terminals max. 2,5 mm2 (AWG 26-14)
Application temperature -20 °C ... +70 °C
Storage temperature -30 °C ... +75 °C
Humidity ≤ 95 % rel. humidity (non-condensing)
Protection rating IP 30
IP 50 (M200SMB / SMB6-V0)
Housing PC/ASA plastic
Color gray (similar RAL 7035)
Weight approx. 90 g
approx. 250 g (with housing M200SMB)
approx. 790 g (with housing SMB6-V0)
Dimensions (w x h x d) 90 x 93 x 23 mm
130 x 143 x 49 mm (with housing M200SMB)
245 x 180 x 100 mm (with housing SMB6-V0)
  • M200SMB Surface mounting box
  • SMB6-V0 Surface mounting housing
