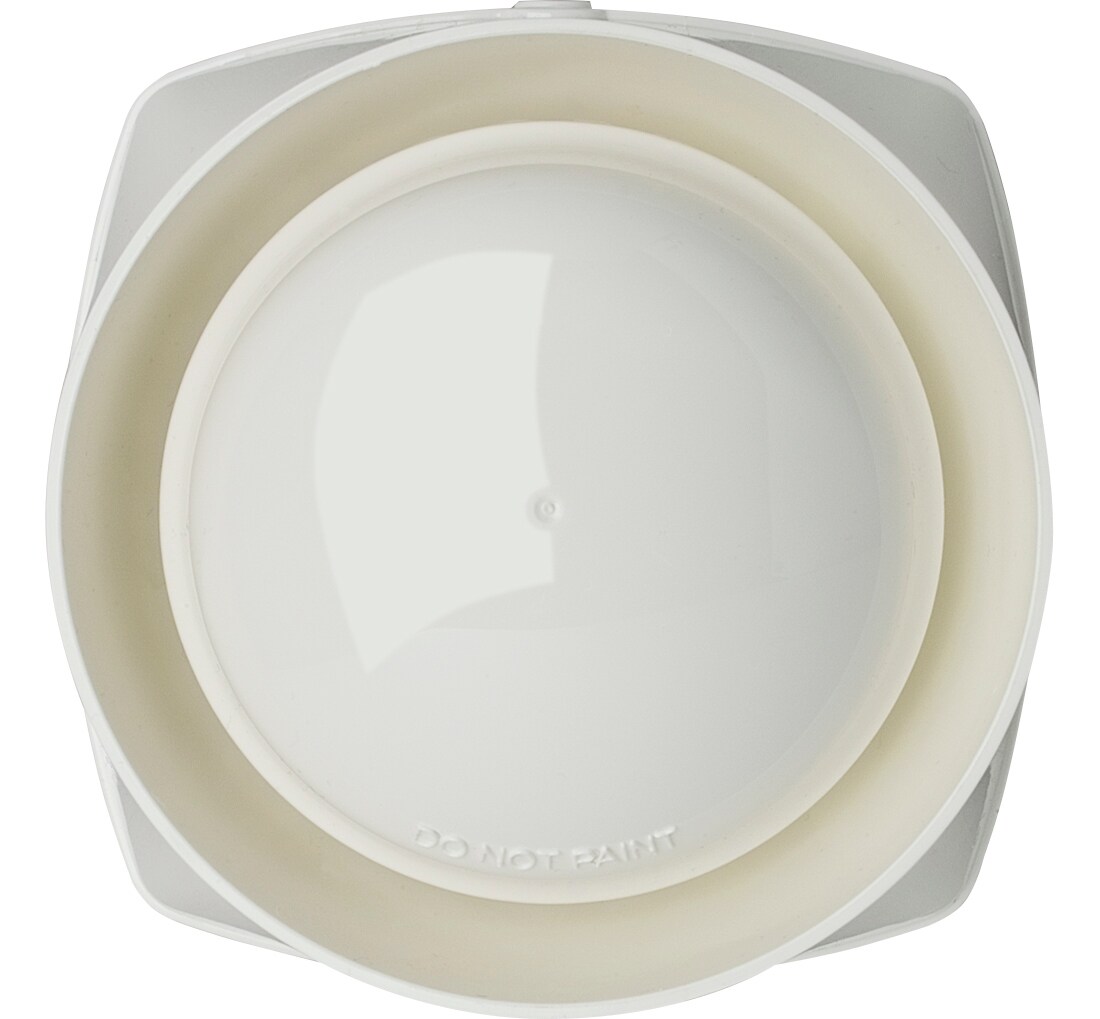

IQ8Alarm Plus/So Sounder, white

807205W

VdS Approval G 218071

Addressable, completely bus supplied and short circuit / open circuit resilient fire alarm sounder in compliance with EN 54‑3 with integrated signaling tones for acoustic alarm signaling.
With up to 20 different programmable signaling tones including DIN tone in accordance with DIN 33404 Part 3.
The volume can be set to 8 different levels. The load factor can be set to 2 different levels.
Signaling device with flat base, suitable for wall and ceiling mounting.
Optionally, IP base Part No. 806201 with side cable entry and weatherproof protection can be installed.

  • Completely bus supplied alarm device
  • Powered loop compatible
  • Low power consumption
  • Up to 64 alarm devices for each powered loop
  • Each alarm device has built-in isolator
  • Synchronous trigger
Acoustic alarm properties:
  • EN 54-3 compliant
  • High acoustic pressure
  • Volume programmable in 8 steps via tools 8000
  • 20 different signaling tones, including DIN tone
Additional Information:
  • Replacement for Part No. 807205

Common technical data:


Quiescent current @ 19 V DC
approx. 55 μA
Quiescent current @ FACP battery
approx. 300 μA @ 42 V
Operating voltage
14 ... 42 V DC (via powered loop)
Ambient temperature
-10 °C ... 55 °C
Storage temperature
-25 °C ... 75 °C
Type of protection
IP 43*2
IP 56 with IP base 806201*3
Housing
Polycarbonate plastic
Air humidity
< 95 % (non-condensing)
Color
white, similar to RAL 9010
Weight
approx. 300 g (with base)
Declaration of Performance
DoP-21430171215
Dimensions
Ø: 112 mm D: 78 mm
Ø: 112 mm D: 93 mm (with IP base)

Acoustic:

Load factor acoustic
1,5 *1 / 3
Sound level
91 *1 / 97 dB (A) +/- 2 dB @ 1 m / @ 90° angle / @ DIN Tone
Specification
EN 54-3: 2001 / A1: 2002 / A2 : 2006 / -17: 2005
EN 54-3 Sounder

*1 Factory setting, configuration with service- and programming software tools 8000
*2 IP 21C acc. EN 54-3 / -23
*3 Do not use the base for acoustic alarm applications in compliance with EN 54-3

  • 806201 IP base, white
