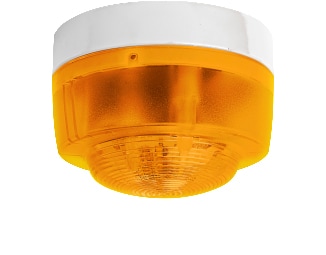

Optical alarm signaling device, amber flash

CWST-WA-S7

Optical alarm device for wall and ceiling mounting with amber signal flash and flat base.
The device does not comply with EN 54-23.

Features & Benefits
Technical Data
Accessories
Documents

Flat design
Synchronous flash trigger
Low alarm power

Additional Information:

Not suitable for use outdoors or in damp areas. Please use therefore the optional bases and accessories (Part No. CWW, PS188, PS189). Replacement for Part No. 766411.

Operating voltage	12 ... 29 V DC
Current consumption @ 24 V DC	approx. 3 mA (@ DIN tone)
Frequency of flash	approx. 0.5 Hz
Flash Color	yellow
Ambient temperature	-25° C ... 70° C
Air humidity	<96 % (non-condensing)
Type of protection	IP21C, IP65 with CWW and accessories
Material	PC/ABS, UL94-V0 PC, UL94-V0 (Lens)
Color	base: white, similar RAL 9003 cap: amber
Weight	approx. 164 g
Dimensions	Ø: 100 mm H: 72 mm Ø: 100 mm H: 97 mm (incl. IP base)

CWW Base deep IP 65, white
PS188 Base deep, O-Ring
PS189 Base deep, seal

Type	Name	Size
Promotional - Product Data Sheets
	Product data sheet Non-Addressable Audible Visual Devices Sounders, Beacons, Sounder Beacons Version: 04.2016	1 MB
