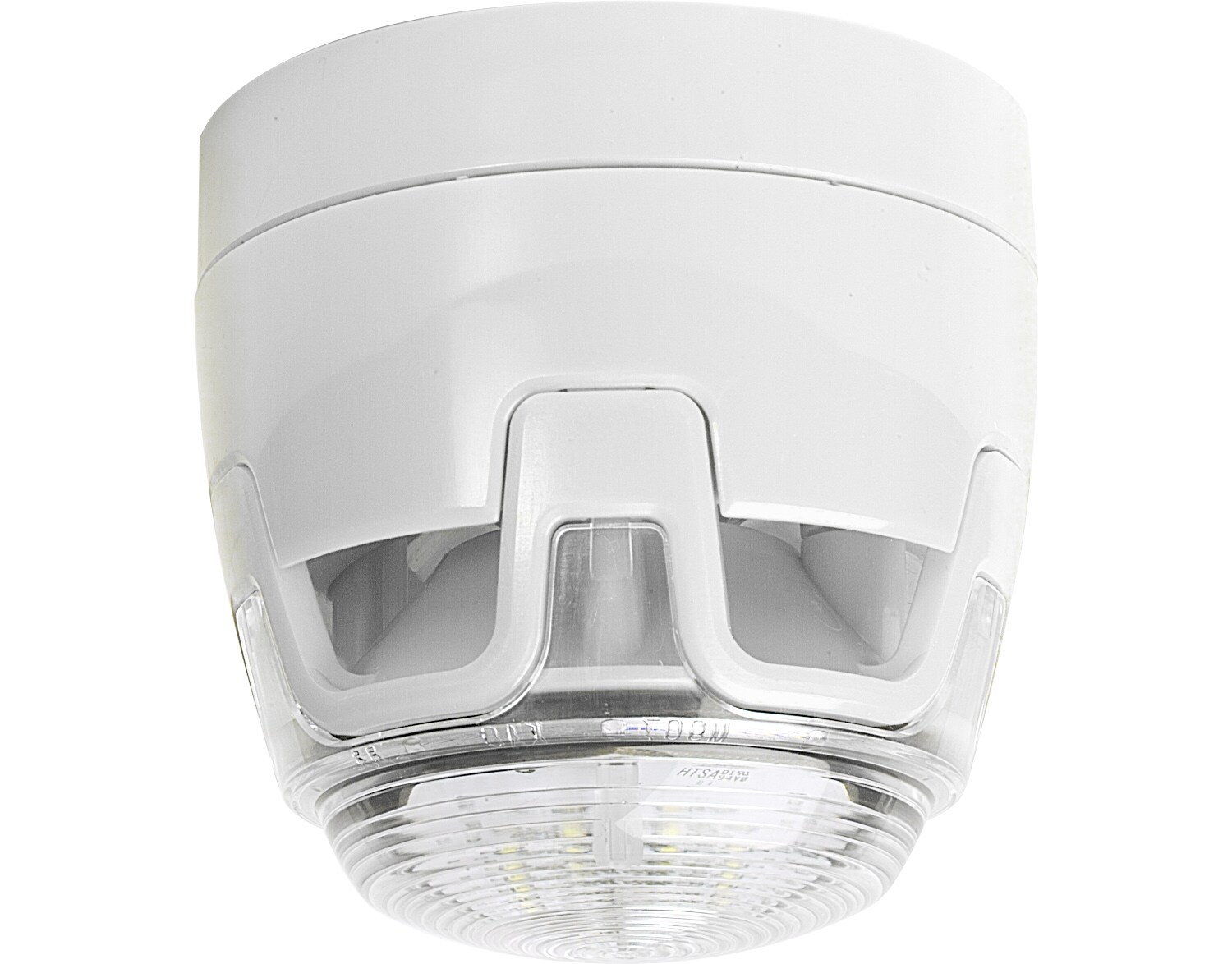

Combined acoustic/optical alarm device, red flash, white housing

CWSS-WR-S3

Combined acoustic alarm signaling device is EN 54-3 compliant with additional optical display, in white housing, and offers a selection of 32 signal tones including the DIN tone and other countryspecific tones. All tones comply with EN 54-3. Tone configuration takes place via a 6-pin DIP switch. Up to two different signal tones may be activated. Signaling device with flat base, suitable for wall and ceiling mounting.
The integrated optical display with red signal flash is only authorized under EN 54-23 in open category O for 24–29 V DC operating voltage. Below 24 V DC, the device is classified as an acoustic signaling device with additional display. To help define your conventional Visual Alarm Devices (VADs) requirements in line with the EN54-23 standard, we have developed an easy to use online guide. Simply enter the room dimensions and ambient light conditions and the guide will help your device selection: http://www.kac.co.uk/EN54-device-chooser.htm.

Features & Benefits
Technical Data
Accessories
Documents

EN 54-3 compliant
Cat. O under EN 54-23
Synchronous sound and flash trigger
Volume adjustable to 2 levels at the device
Suitable for wall and ceiling mounting

Additional Information:

Not suitable for use outdoors or in damp areas. Please use therefore the optional bases and accessories (Part No. CWR, PS188, PS189). Use of the deep IP socket reduces the dB output by an average of 4 dB. Replacement for Part No. 766240.

Connection terminal	0.5 ... 2.5 mm2
Operating voltage	12 ... 29 V DC
Flash color	red
Frequency of flash	approx. 0.5 Hz
Color	base: white, similar RAL 9003
Weight g	approx. 236 g
Material	PC (Lens)
Air humidity	< 96 % (non-condensing)
Sound level @ 12 V DC	96.5 dB(A) @ 1 m (DIN Tone)
Sound level @ 24 V DC	102.5 dB(A) @ 1 m (DIN Tone)
Type of protection	IP 21C, IP 65 with base CWR
Specification	EN 54-3 acoustic signaling device; EN 54-23 optical signaling device, (Cat O, 24 ... 29 V DC)
Current consumption @ 12 V DC	approx. 15.5 mA @ DIN Tone
Current consumption @ 24 V DC	approx. 35.4 mA @ DIN Tone
Ambient temperature	-25 °C ... 70 °C

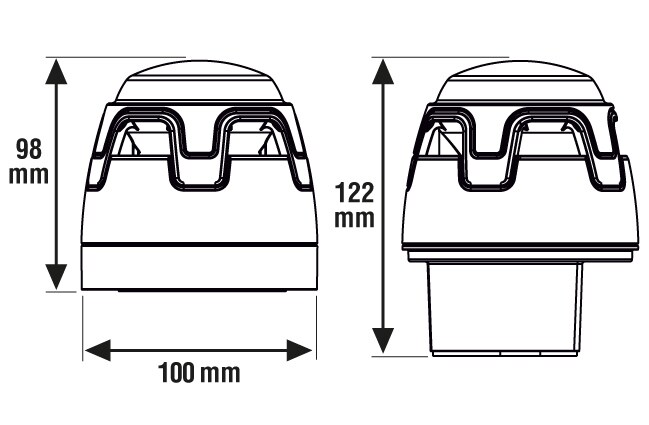

Dimensions	ø: 100 mm H: 122 mm (incl. IP base)

CWW Base deep IP 65, white
PS188 Base deep, O-Ring
PS189 Base deep, seal
