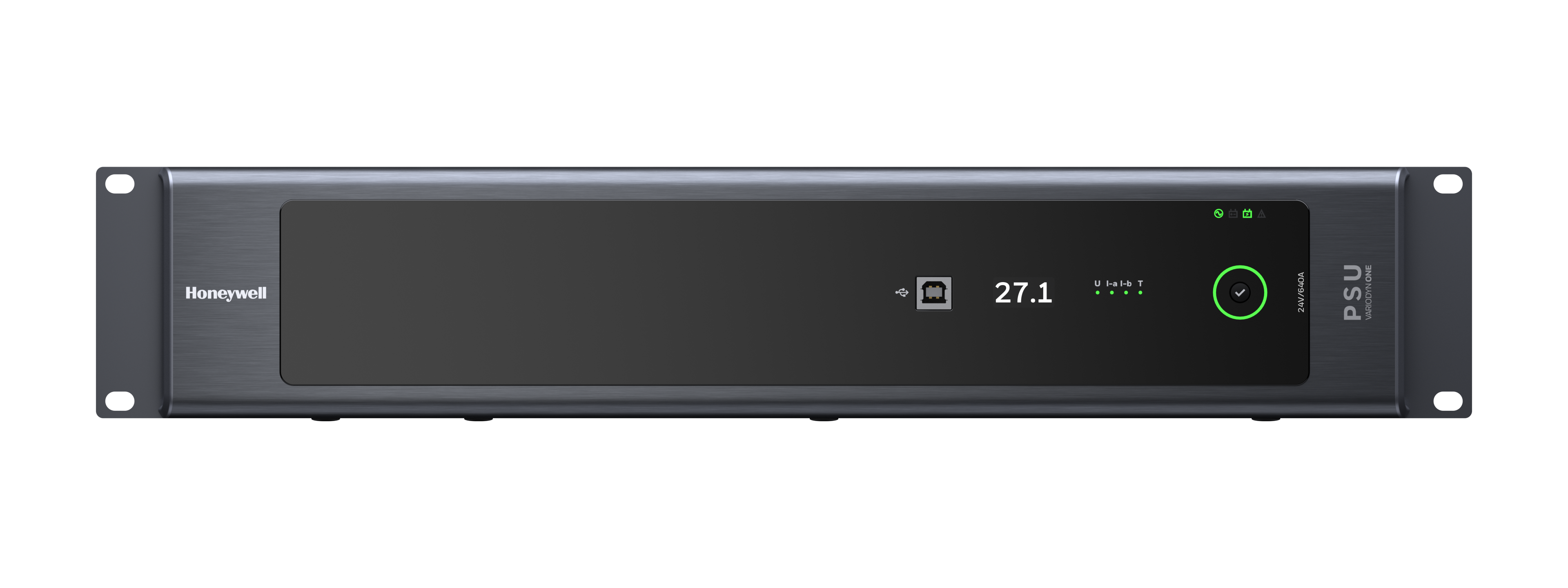

Power supply unit VPS-2-640A

585053

Approval: EN 54-4

The VARIODYN ONE VPS power supply is demanded to operate as battery charger and supervision system for external batteries providing backup voltage 24 VDC, according to the standards EN 54-4 + A1 + A2. This version supports 11 amplifier- and 8 AUX outputs with overall 640 A output current.




Space saving solution
Battery capacity up to 810 Ah
Monitoring of battery charging current and status
USB digital communication for servicing
Simple and convenient installation
Certified to EN 54-4

Power Input

230 / 115 V 50 / 60 Hz

Overcurrent protection at the OUT outputs

5 x 75 A, 6 x 40 A

Max total number of power amplifiers

5 x 2000 W, 6 x 1000 W

Overcurrent protection at the AUX outputs

4 x 8 A, 4 x 4 A

Max total current at the AUX outputs

2 x 15A

Max number of battery banks @ 24V

3

Floating voltage @ 25°C

27,1 V

Max total capacity of the external battery for 230V/115VAC

810 / 720 Ah

Max charging current for 230V/115VAC

36 / 30 A

Max resistance of a single battery circuit

65 mΩ

Dimensions (H x W x D)

88 x 483 x 336 mm

Weight

7,8 Kg



581730 Battery for emergency power supply 12 V / 105 Ah
581731 Battery for emergency power supply 12 V / 150 Ah
581733 Battery for emergency power supply 12 V / 210 Ah
585063 19" mounting set with cutout for fuse holder and circuit breaker
