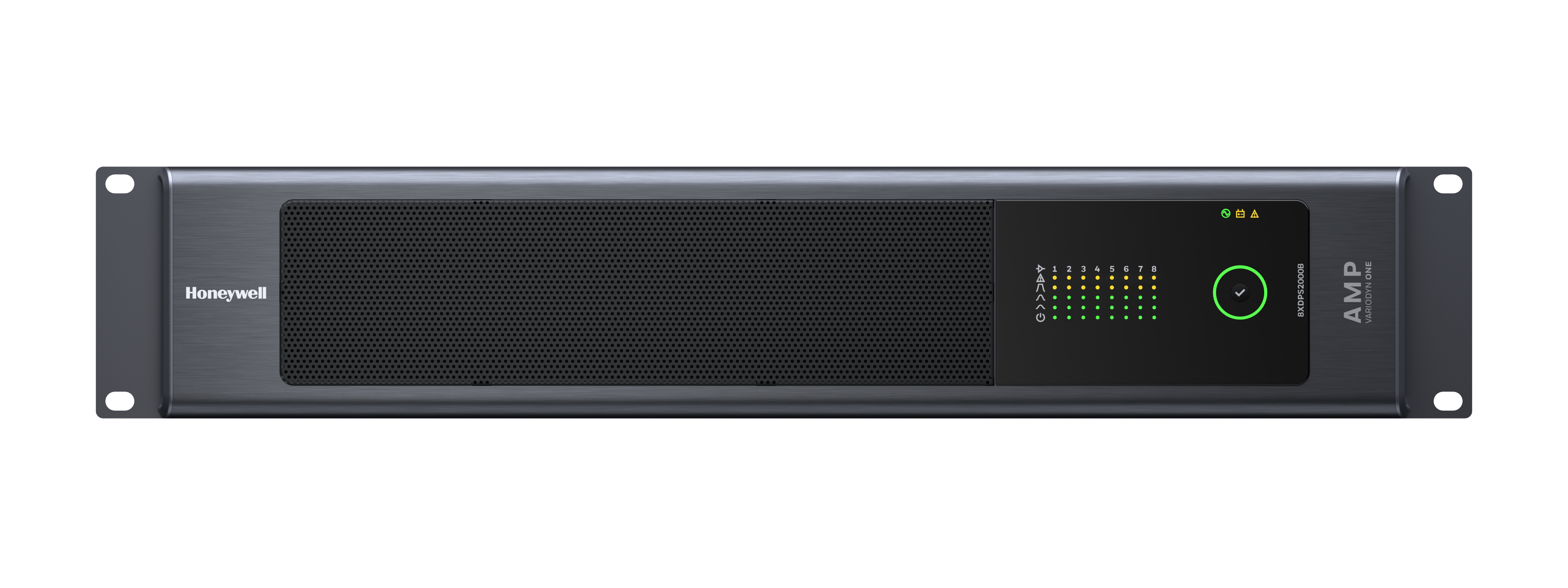

Amplifier 8XDPS2000B with battery charger

585036

Approval: EN 54-4 / EN 54-16

The 8XDPS2000B is an 8-channel amplifier with power-sharing technology and a built-in battery charger. It delivers a total power of 2000 W. Each channel can deliver 500 W/100 V. The unit features a configurable integrated battery charger for charging 24 V batteries up to 150 Ah, providing backup power in the event of a mains failure.



8-channel Direct-Drive amplifier
Power Sharing technology
High efficiency Class D Amplifier
Delivers maximum possible power under overload or overdrive condition
Extensive self-monitoring and control
Protection against overload and wiring short
Protection against overheating
Temperature management with variable speed fan assisted cooling
Full configuration, control, status reporting, and diagnostics over CAN bus by VARIODYN® ONE INC system control module
Battery charger designed to EN54 Part 4, capable of charging up to 150Ah battery packs
Protected DC 24V power output
Mains voltage 230V AC 50 to 60 Hz, ±10%
Battery capacity and type
Valve-regulated lead-acid battery: 65Ah min. (factory default configuration),105Ah,150Ah max.
Battery operating voltage range
21.5V DC to 28.5V DC
Battery charger current limit
Configurable by battery capacity, 10A max
Battery source impedance
0.10 Ω max.
Battery charger start-up
15V DC min. battery voltage
Battery under voltage cut-off protection
20V DC
Battery charger temperature compensation factor
24mV/ºC, 36mV/°C (factory default), 48mV/°C
Operation modes
Channel Enable/Channel Disable/Power Saving Mode
Output power EN54-16 (mains powered) Single channel max. 500W/100V
Output voltage
100V at 0 dBu input
Distortion at -3dB below rated power (resistive load)
< 0,06% THD at 1 kHz sine wave
Signal to noise ratio at rated power
87 dB (A - weighted)
Frequency response at the rated power
20 Hz < -1.0 dB; 22 kHz < - 2.0 dB
Input clipping
= +20 dBu
Input impedance (balanced)
>20 kΩ
Technology
Class D Direct Drive
Efficiency at a maximum load
≥ 78 % typical (Mains powered)
External DC power output
24V DC (18V DC to 28.5V DC) / 3A max. electronically protected against overload or short-circuit
Ambient temperature
-5 °C to +55 °C
Storage temperature
-10 °C to +55 °C
Relative humidity
Up to 93 % (non-condensing)
Air flow direction From rear to front of the amplifier unit
Housing Metal
Color RAL 810-M (Enclosure)
Weight 12.0 Kg
Dimensions (w x h x d) 441 x 88 x 401 mm (2 HU)
Approval EN 54-16 and EN54-4 (Battery charger)

585301 8 Channel amplifier output cable
585302 4 Channel amplifier output cable
585303 2 Channel amplifier output cable
585304 1 Channel amplifier output cable
585305 Amplifier backup cable - 1 channel, 0.5m
585306 Amplifier backup cable - 2 channel
585307 Amplifier backup cable - 4 channel
585305.01 Amplifier backup cable - 1 channel, 2m
