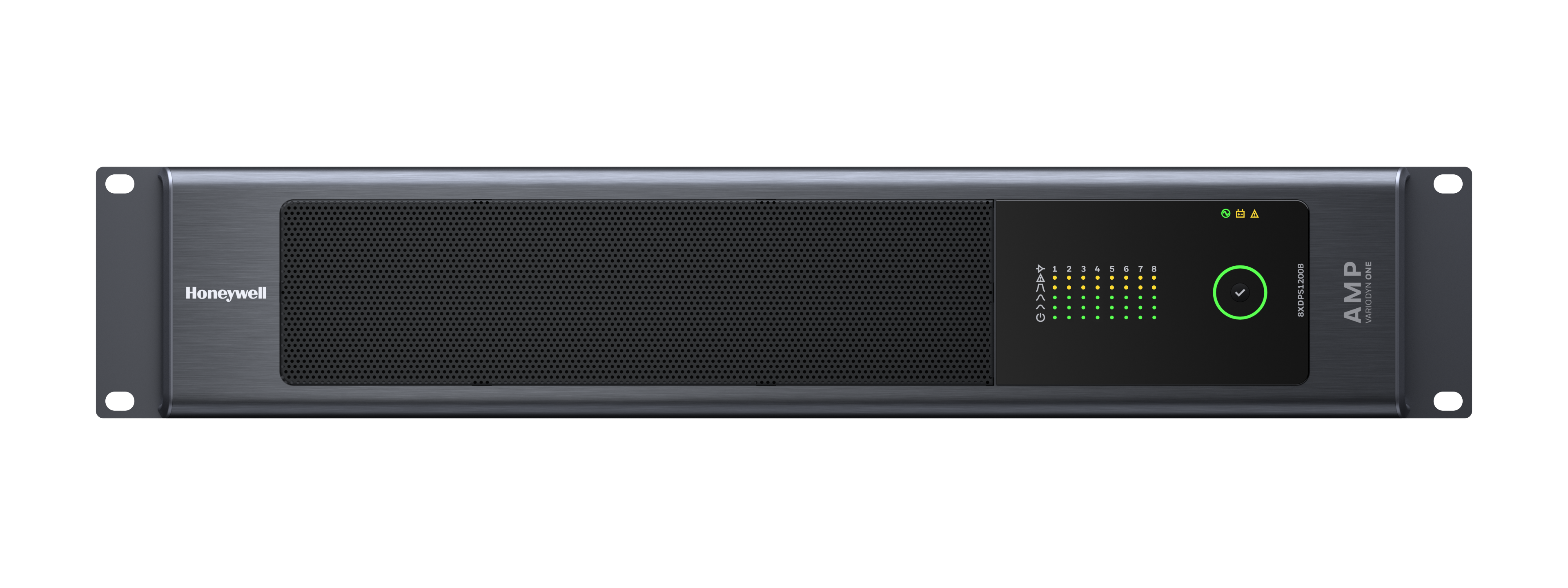

Amplifier 8XDPS1200B with battery charger

585035

Approval: EN 54-4 / EN 54-16

The 8XDPS1200B is an 8-channel amplifier with power-sharing technology and a built-in battery charger. It delivers a total power of 1200 W. Each channel can deliver 500 W/100 V. The unit features a configurable integrated battery charger for charging 24 V batteries up to 150 Ah, providing backup power in the event of a mains failure.


8-channel Direct-Drive amplifier
Power Sharing technology
High efficiency Class D Amplifier
Delivers maximum possible power under overload or overdrive condition
Extensive self-monitoring and control
Protection against overload and wiring short
Protection against overheating
Temperature management with variable speed fan assisted cooling
Full configuration, control, status reporting, and diagnostics over CAN bus by VARIODYN® ONE INC system control module
Battery charger designed to EN54 Part 4, capable of charging up to 150Ah battery packs
Protected DC 24V power output
Mains voltage 115V to 230V AC 50 to 60 Hz, ±10%
Battery capacity and type Valve-regulated lead-acid battery: 65Ah min. (factory default configuration),105Ah,150Ah max.
Battery operating voltage range 21.5V DC to 28.5V DC
Battery charger current limit Configurable by battery capacity, 10A max
Battery source impedance 0.10 Ω max.
Battery charger start-up 15V DC min. battery voltage
Battery under voltage cut-off protection 20V DC
Battery charger temperature compensation factor 24mV/ºC, 36mV/°C (factory default), 48mV/°C
Operation modes Channel Enable/Channel Disable/Power Saving Mode
Output power EN54-16 (mains powered) Single channel max. 500W/100V (350W/70V or 125W/25V)
Output power EN54-16 (battery powered) Single channel max. 500W/100V (350W/70V or 125W/25V)
Output voltage 100V (factory default configuration), 70V or 25V at 0 dBu input
Distortion at -3dB below rated power (resistive load) < 0,06% THD at 1 kHz sine wave
Signal to noise ratio at rated power 87 dB (A - weighted)
Channels separation >70 dB
Frequency response at the rated power 20 Hz < -1.0 dB; 22 kHz < - 2.0 dB
Input impedance (balanced) >20 kΩ
Input clipping = +20 dBu
Technology Class D Direct Drive
Efficiency at a maximum load ≥ 77 % typical (Mains powered)
External DC power output 24V DC (18V DC to 28.5V DC) / 3A max. electronically protected against overload or short-circuit
Ambient temperature -5 °C to +55 °C
Storage temperature -10 °C to +55 °C
Relative humidity Up to 93 % (non-condensing)
Air flow direction From rear to front of the amplifier unit
Housing Metal
Color RAL 810-M (Enclosure)
Weight 12.0 Kg
Dimensions (w x h x d) 441 x 88 x 401 mm (2 HU)
Approval EN 54-16 and EN54-4 (Battery charger)

585301 8 Channel amplifier output cable
585302 4 Channel amplifier output cable
585303 2 Channel amplifier output cable
585304 1 Channel amplifier output cable
585305 Amplifier backup cable - 1 channel, 0.5m
585306 Amplifier backup cable - 2 channel
585307 Amplifier backup cable - 4 channel
585305.01 Amplifier backup cable - 1 channel, 2m
