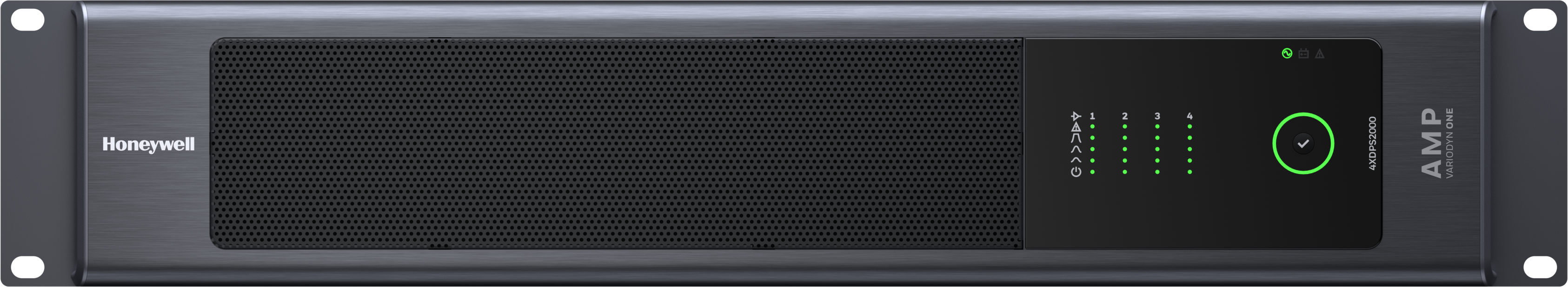

Amplifier 4XDPS2000 , Power Sharing

585034

Approval: EN 54-16

4XDPS1200 is a 4 channel amplifier with Power Sharing technology with 500 W of maximum power per channel and total power of 2000 W.

• Four direct-drive amplifier channels per amplifier
• Inbuilt Power Save mode
• Flexibility to program one channel as a backup channel
• Futuristic design to ensure great thermal performance and ease of installation
• Intuitive display interface to ensure you easily understand the device status
• Power Sharing Technology
Mains voltage 230 V AC, +10%/-5%
Frequency range 50 … 60 Hz
Emergency power supply 21,5 V DC … 28,5 V DC
Rated current @ 230 V AC *6 6.0 A
Rated current @ 24 V DC*6 40.1 A
Current (1 kHz sinus/1 min.) 24 V DC*7 83.0 A
Output power *8 2000 W in total, single channel max. 500 W
Technology Class D
Transmission range 20 … 22 kHz
Input level 0 dBu
System input impedance 20 kOhm
Signal to noise ratio ≥ 97 dB (A)
Channel separation ≥ 83 dB
Distortion factor 1 kHz ≤ 0.5 %
Efficiency ≥ 80 %
Ambient temperature -5 °C … +55 °C
Storage temperature
-10 °C … +55 °C
Humidity
up to 93 % rel. hum. (non-condensing)
Housing
Metal
Color
gray, similar to RAL 7016
Weight
Approx. 11.5 kg
Dimensions
(w x h x d) 483 x 88 x 401 mm (2HU)

585302 4 Channel amplifier output cable
585303 2 Channel amplifier output cable
585304 1 Channel amplifier output cable
585305 Amplifier backup cable - 1 channel, 0.5m
585306 Amplifier backup cable - 2 channel
585307 Amplifier backup cable - 4 channel
585305.01 Amplifier backup cable - 1 channel, 2m
583413 Cable set for connecting batteries 4XDB
583491A Cat5 patch Cable, 0.5m (green)
