Wall/Ceiling Loudspeaker Round EDL A 10-165/T

581257

Surface mount loudspeaker made of powder-coated metal in white with high efficacy and a high-quality 165 mm broad band loudspeaker chassis.

The EDL-A 10-165/T can be installed on ceilings and walls where flush mounting is not possible. Flat and elegant design for unobtrusive installations which can be realized without bothersome “extruding lips” thanks to the hidden mounting bracket.

Loading capacity 10 W
Color white, similar to RAL 9010
Weight kg approx. 1.23 kg
Dispersion angle 180°
SPL 1 W / 1 m 102.2 dB
SPL Pmax / 1 m 112.2 dB
Transformer power taps 10 / 6 / 3 / 1,5 W
Transmission range 290 ... 23.400 Hz

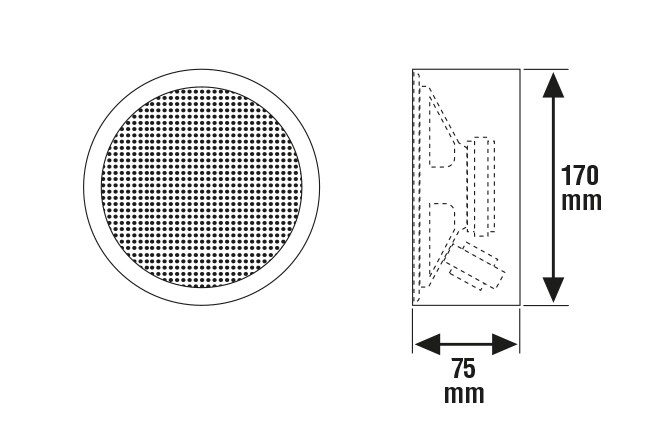

Dimensions ø: 170 mm D: 75 mm
