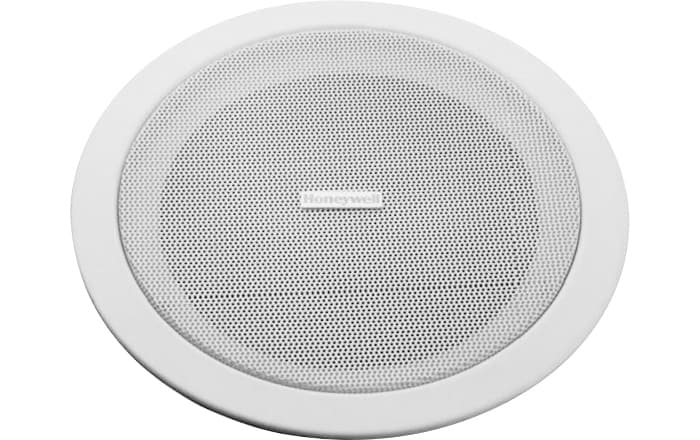

6 W 5'' ceiling loudspeaker, metal

581263

The cost-effective ceiling loudspeaker features an excellent sound reproduction and an esthetically appealing design. It is versatile and distinguishes itself by its high sound pressure and its broad frequency range. It features 6 W Dual Cone driver unit and a back-mounted 100 V transformer. The loudspeaker is CE and RoHS compliant.

Additional Information:

Delivery time on request.

Ambient temperature
-25 °C ... 55 °C
Storage temperature
-40 °C ... 70 °C
Rated Power
6 W
Transformer power taps
6 / 3 / 1,5 W
Material
Metal
Air humidity
< 95 %
Color
white, similar to RAL 9003
Weight
approx. 0.71 kg

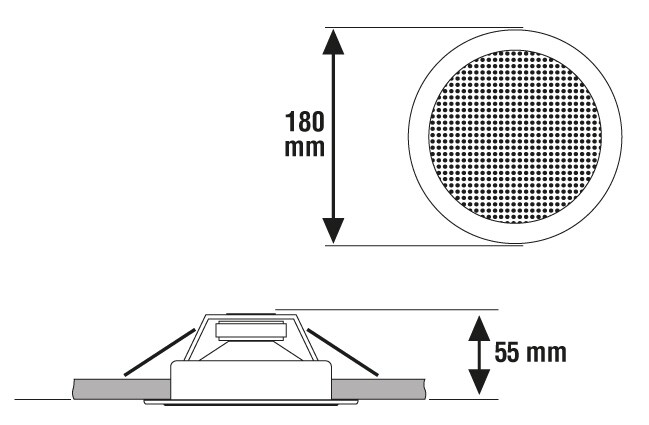

Dimensions
Ø: 180 mm D: 55 mm
Rated impedance 1,7 / 3,3 / 6,7 kΩ
SPL 1 W / 1 m
90 dB
Transmission range 120 ... 20000 Hz (-10 dB)
Dispersion angle 160°
Cut-out size
(Ø min.) 150 mm
