INTEVIO 500W Class-D Power Amplifier

RK-AMP500

Voice Alarm EN54-16 Certified
Safety CE/CB Certified

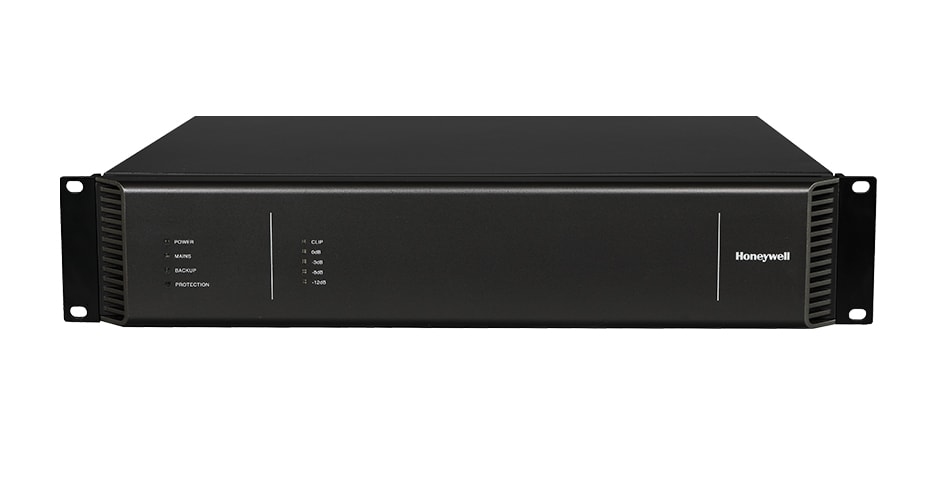

RK-AMP500, 500W Digital Power Amplifier, is used to amplify the audio signal to drive loudspeakers. It is reliable, efficient and light in weight.
  • Class-D technology with high efficiency
  • Maximum 500W power output
  • 70V and 100V audio output
  • Supports both balanced and unbalanced audio input
  • Forced fan cooling
  • Automatic output voltage limit.
Main power supply AC 100 V ... 240 V 50/60 Hz
Backup power supply 21.5 V DC ... 28.5 V DC
Relative humidity <95%, without condensing
Operating temperature 10°C ... +55 °C
Storage temperature -40°C... ~ +70°C
Dimension W: 482 mm H: 88 mm D: 407 mm
Net weight 11.2 kg
Power consumption <700 W
DA output 70 V / 100 V
SNR 100 dB ± 5%, A-weighted
THD <0,1% (at 1/3 rated power. 1kHz)

Promotional - Brochures

TypeNameSize
Brochure INTEVIO Version: 11.2019 3 MB

Promotional - Product Data Sheets

TypeNameSize
Product data sheet RK-AMP500 INTEVIO 500W Class-D Power Amplifier. Version:11.2018 121 KB
