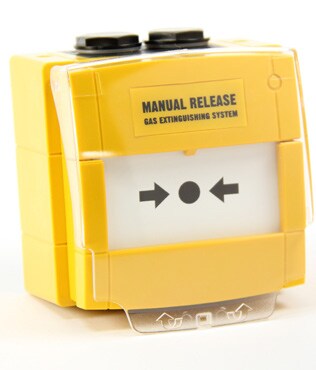

Manual release MCP extinguishing yellow, outdoor

W3A-Y000SG-K013-65

The Call Points can be used as part of a system to efficiently manage the release of any extinguishing gas in accordance with EN12094-3:2003.The non-addressable Call Point range is designed for outdoor (IP67) use.
•Easy cable access simplifies installation
•Range of installation options, for outdoor (IP67) applications
•Independently verified by Bureau Veritas to EN12094-3:2003
•High quality materials maximize operational life

•Modern aesthetics and compact design with anti-tamper features

Max Voltage
30VDC
Current rating
2 A
Operating temperature
-10 °C to +55 °C
Operating humidity
93% +-3%
Protection
IP 67
Dimensions
W: 97.6 mm H: 105 mm D: 30 mm
Weight
350 g
Plug-in Terminals
0.5 to 2.5 mm2
Housing Colour
Yellow
Material
PC/ABS
  • SC070 Pack of 10 test keys
  • MUS155 Pack of 5 glass elements
  • PS200 Plain hinged cover
