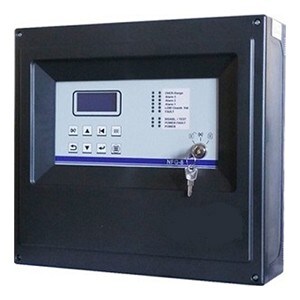

8 Zones Gas Detection Panel


Central gas detection system with 8 zones to which it is possible to connect a toxic or explosive gas detector of proportional type 4-20mA. LCD display with 4 lines of 16 characters, membrane keyboard with protected access via mechanical key, 6 programmable relay outputs for pre-alarm, alarm and general fault with threshold management. The system allows to have up to 22 programmable outputs through an optional board (NFG-16R). Equipped with LED signaling for pre-alarm 1, pre-alarm 2, alarm, sensor disabled and fault. ATEX and SIL1 certified.

• 8 selectable languages
• Programmable labels: 32 characters
• Programmable alarm threshold for sensors.
• Decision algorithms for alarm, pre-alarm and fault criteria.
• Logging file of 1.000 events consultable from display and downloadable on PC
• Real time clock.
• Key switch with 3 positions for enabling control functions
• TEST and MAINTENANCE modes of the system
• 6 programmable Relay outputs with 8A 250V contacts on board, expandable with 16 relays 6A 250V board.
• Each output can be used as potential-free NO or NC contact.
• PC programming via the RS232 serial port or USB
Operating voltage
100÷240Vac +/- 15%, 10VA max 50÷60Hz
Current consumption
750mA @ 220Vac
Battery Charging
27,6 Vdc - 2,7A (with temperature compensation)
Recommended batteries (not inlcuded)
2 x 7 Ah
Utility Outputs
27,6 Vdc (+3% +/ -18%) 1 A each and protected by fuse
Relay contacts capacity in central unit
8A 250Vac
Relay contacts capacity optional board
6A 250Vac
Operating temperature
0 °C to +55 °C
Storage temperature
-20 °C to +60 °C
Relative humidity (operation)
15 to 85% (non-condensing)
Relative humidity (storage)
5 to 85% (non-condensing)
Degree of protection
IP 42
420 x 380 x 160 mm
4 Kg (without batteries)
  • NFG-16REL 16 relay card for NFG-8
