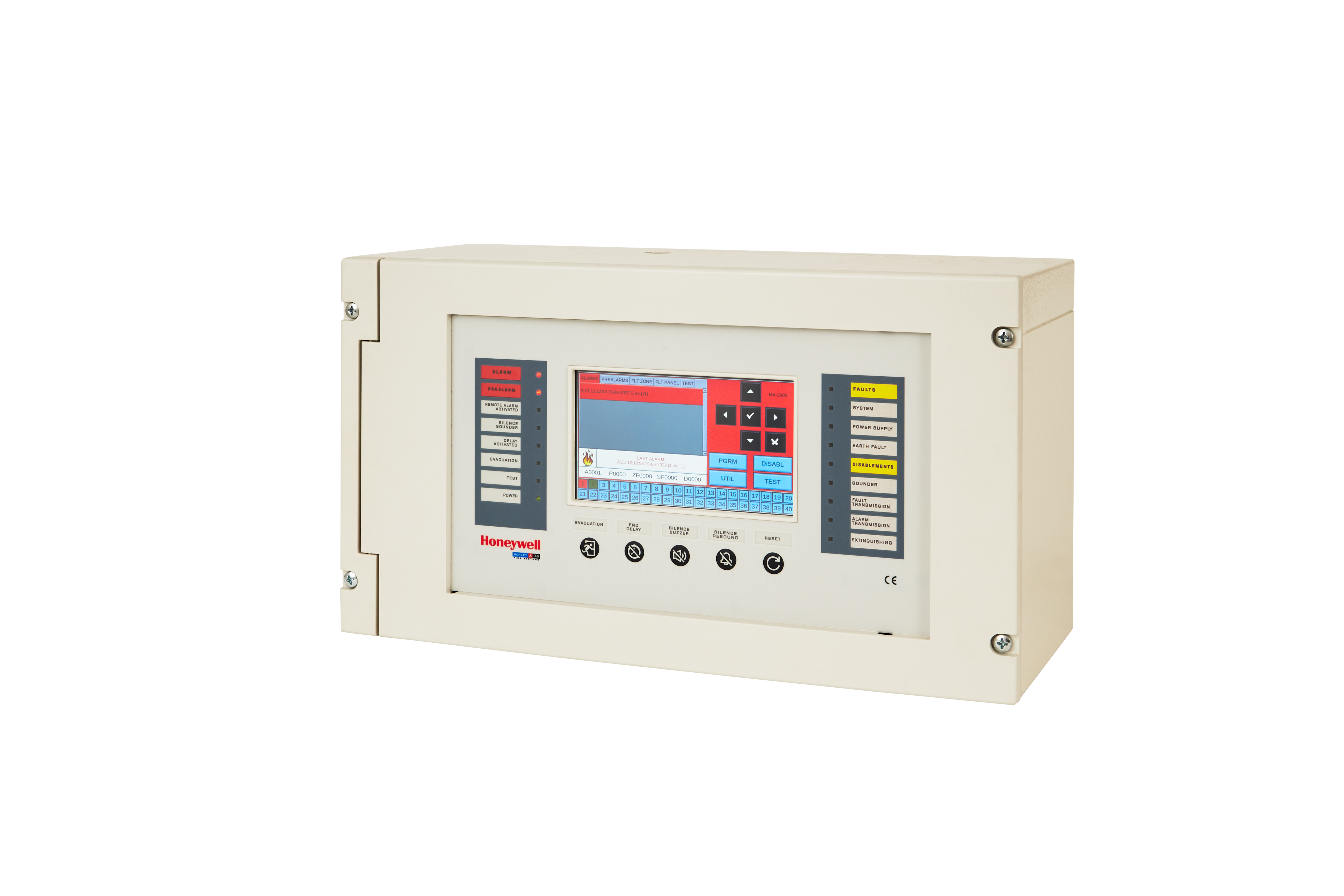

Morley-IAS Max 2 loop panel

MA-2000-02

The MA-2000 panel has a 7 “TF T touch display (800 x 480 with backlight) with 256 colours for entering the control panel programming data and interacting with the operators. The panel, can be networked thanks to its two high-speed, opto-isolated, CAN bus lines for connecting a fail-safe closed loop network. With components distributed throughout the building, up to 64 panels or 128 loops can be networked together to build a unified system that shares events and logic Max panels offer multiple installation options, in addition to standard wall mounting: special frames are available for flush mounting options.

• 4 access levels in accordance with EN 54 standards
• Programmable text (32 characters) for points and zones
• Up to 2000 soft zones, 400 logical groups in stand-alone systems and 1600 groups in network configuration with 64 panels or 128 total loops
• Control-by-event (CBE) equations for activations with logical operators
• Historical log stores 10,000 events, plus 4,000 active events in non-volatile memory (standalone or network configuration)
• Clock in real time
• Auto-programming lines with automatic recognition of the model of the devices
• Decision algorithms for the alarm, pre-alarm and faults
• Automatic day / night sensitivity change
• Indication of the need to clean the smoke sensors
• Programmable alarm threshold for all sensors
• Walk-Test function by zone
Main power supply
100 ... 240 V AC, 50 / 60 Hz, max. 1,7A @ 230 V AC
Battery capacity
2x 12V / max. 17Ah
Loop power
750 mA
Outputs
1 fault (NO/NC); 1 alarm and 2 optional (NO/NC or monitored 1 A, balanced with resistor or diode)
Sounder output
1 (monitored 1 A, balanced with resistor or diode)
24 VDC output
max. 1 A
Color
RAL 9002
Protection class
IP30
Dimensions (H x W x D)
265 x 483 x 217.5 mm
Operating temperature
-5 °C to +40 °C
Storage temperature
-10 ° C to +50 ° C
Humidity
5% - 95% non-condensing
Weight
6 Kg
  • MA-2BZL Flush bezel kit for MA-2000
  • MA-BST-C Booster card for CAN bus network
