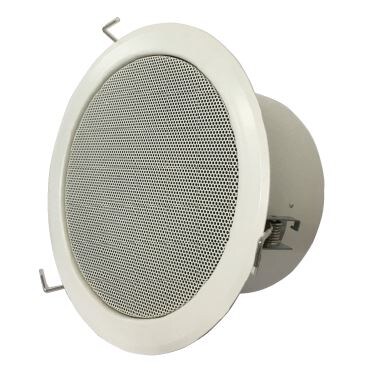

L-VCM06C/EN(AB) & 582413: Ceiling Loudspeaker

582413

L-VCM06C/EN(AB)&582413 dual channel (A&B channel work at the same time) voice alarm ceiling loudspeaker. Its low distortion, and high sound pressure level ensures the delivery of intelligible voice and superior sound. The low profile makes it easy to blend, and the stylish design matches most applications, such as hotel, shopping mall , conference room, cinemas, and exhibition hall.

• Intelligible voice and superior sound reproduction
• Blend easily with any indoor decorations
• Robust metal housing with fire-resistant dome
• Simple power setting and wiring
• Complies with EN54 part 24 standard
Electrical
A/B / A+B
Max power
9 W / 18W
Rated power
6 W / 12W
Power tapping
6 W / 3 W/ 1.5W (100V)
Sensitivity (1W/4m,100Hz~10kHz)
80 dB / 86dB
SPL(1W/1m,100Hz~10kHz)
92 dB / 98dB
SPL(6W/4m,100Hz~10kHz)
87 dB / 93 dB
Frequency response (-10 dB)
300 Hz ~ 13kHz
Rated input voltage
100 V /70V
Rated impedance
1.67kΩ/3.33kΩ/6.67Ω
Connection
Fire-resistant cable
Mechanical

Dimensions
Φ262 mm x 135 mm
Weight
2.47 kg
Front grille / Dome Color
White(RAL9010)
Speaker size
3x5 inch(2pcs)
Environmental

Operating temperature
-25℃ to +55℃
Storage temperature
-40℃ to +70℃
Relative humidity
up to 95%

Technical Documentation

TypeNameSize
L-VCM06C/EN(AB) & 582413: Ceiling Loudspeaker 878 KB
