Approval: G298024

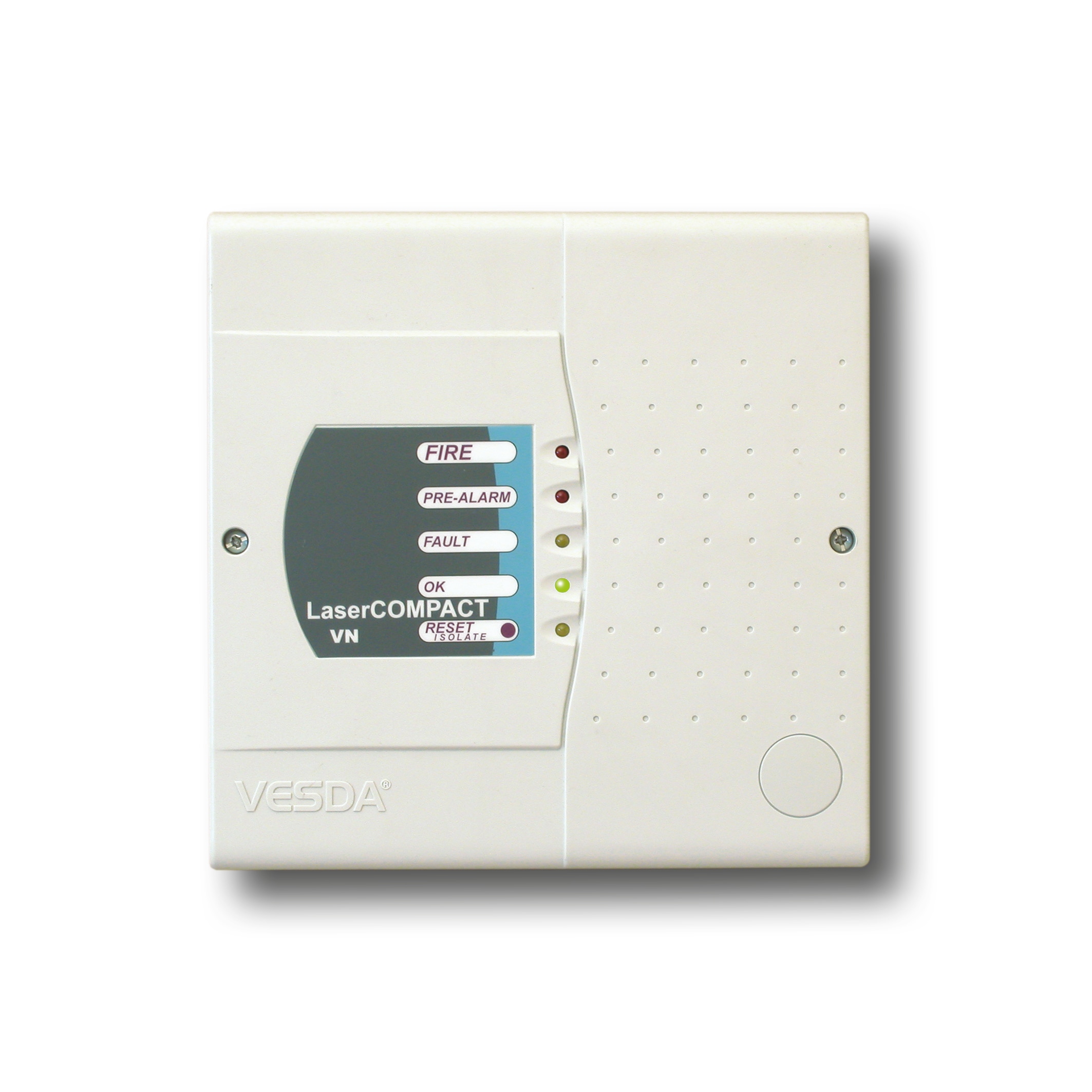

The VESDA VLC detector has been specifically designed to provide all the benefits of aspirating smoke detection, including very early warning, in single environment small areas and where space is a premium.
The VLC combines the well-proven VESDA VLP detection technology with a modified aspirator design, and incorporates them into a compact enclosure with a simplified display.
The detector interfaces via relays only.

  • Absolute smoke detection
  • Wide sensitivity range
  • Single pipe inlet
  • Five status LEDs
  • Clean air barrier optics protection
  • Three alarm levels
  • Three programmable relays
  • Air flow monitoring
  • Simple mounting design
  • AutoLearn™
  • Event log – up to 12000 events

Additional Information:
Filter included in detector

Alarm current @ 24 V DC approx. 245 mA
Operating voltage 18 ... 30 V DC
Weight kg approx. 1,9 kg
Air humidity 10 ... 95 % (non-condensing)
Quiescent current @ 24 V DC approx. 225 mA
Type of protection IP30
Area to be monitored max. 800 m²
Ambient temperature -10 °C ... 38 °C
Dimensions W: 225 mm H: 225 mm D: 85 mm
Contact load relay 2 A @ 30 V DC NO/NC contacts
Alarm sensitivity 0.005%–20% obs/m
Cable termination 0.2–2.5 sq mm
Max. single pipe length 80 m
Max. total branched pipe length
200 m
Aspirated air temperature -20 °C ... 60 °C
Specification EN 54-20, Class A, B, C
  • VSP-005 VESDA Filter for VLP, VLS, VLF, VLC
